Display PDF from a menu of an AlarmTable

🟡 Intermediate

alarm dashboard report

osp-alarms osp-web

This example shows how to define a menu in order to show a PDF file from the configuration on an interaction with an alarm table.

  • Declare the PDF as a web module resource and note its destination path.

  • Create a menu using a preview output that opens the PDF in a modal dialog.

  • Add the menu to an alarm table widget in the dashboard.

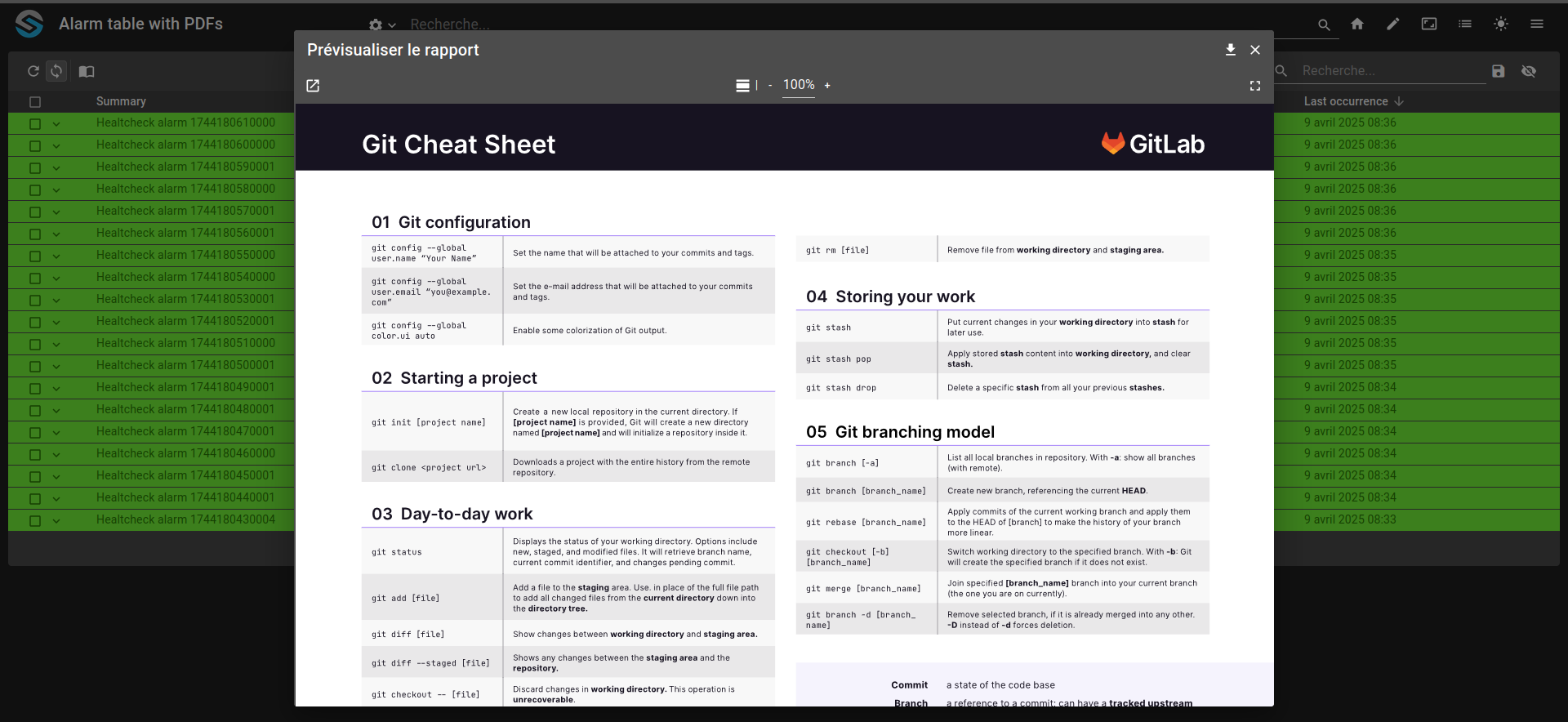

  • Right-click an alarm row to trigger the menu and verify the PDF is displayed.

git checkout origin/osp-alarms-configuration .
git checkout origin/osp-web-configuration .
git checkout origin/example-dashboard-pdf-with-alarm-table .

Steps

1. Declare the PDF in the web module resources

In order to load the PDF, it needs to be defined as a module web resource. Define it as the following, the destination path will be used later for the menu action.

modules/web/web-1/module.resources

{
    "resources":
    [
        {
            "source":"root/pdf/example.pdf",
            "destination":"osp/resources/pdfs/example.pdf"
        }
    ]
}

2. Create a menu opening this PDF

In the menu, we use the preview output to display a modal that will load the given PDF, specified as content. As explained in the description of this example, here you are free to define multiple menu to display different PDF depending on the alarm content.

root/pdf/menu/menu.web

{
    "moduleId": [
        "modules.web.web-1"
    ],
    "name": "Alarms PDF menu",
    "description": "PDF operations",
    "menus": [
        {
            "label": "Open associated PDF",
            "icon": "help",
            "context": [
              {
                "type": "AlarmTable",
                "condition": "${alarms.selected}.length === 0",
                "scopes": ["Click"],
                "output": [
                  {
                    "operation": "preview",
                    "input": {
                      "content": "osp/resources/pdfs/example.pdf"
                    }
                  }
                ]
              }
            ]
        }
    ]
}

3. Create the dashboard with the alarm table

In the dashboard, we want an alarm table with the previously created menu.

root/dashboard/dashboard.view

{
    "configuration": [
      {
        "type": "AlarmTable",
        "id": "aQEoDuEk",
        "title": "",
        "options": {
          "userPreference": "LOCAL_STORAGE"
        },
        "menuReferences": [
          "root.pdf.menu"
        ],
        "alarmWidgetSettings": {
          "defaultFilter": "root.alarms.filters.all",
          "defaultView": "root.alarms.views.default"
        }
      }
    ],
    "layout": {
      "lg": [
        {
          "w": 12,
          "h": 4,
          "x": 0,
          "y": 0,
          "i": "aQEoDuEk"
        }
      ]
    },
    "breakpoints": {
      "lg": 1200,
      "md": 996,
      "sm": 768,
      "xs": 480,
      "xxs": 0
    },
    "cols": {
      "lg": 12,
      "md": 10,
      "sm": 6,
      "xs": 4,
      "xxs": 2
    },
    "rowHeight": 150
  }
