Version 2.1.X - Fluffy Squirrel

Version 2.1.2

Release date : September 2026

Improvements

  • #2041: A menu or toolbar item without an icon now shows a bug_report icon. It used to be invisible in toolbars and in the MenuAction widget, where only its tooltip gave it away.

  • #2041: The list of a toolbar that has more items than it can display, and the sub-menus of a menu or toolbar, now look like the menu opened by a click.

    Their labels were centered and started at different positions depending on their length and on their icon, and the list had no border to set it apart from the widget behind it. Labels are now aligned after the icon, items without an icon line up with the others, and the list is drawn on a raised panel. The gap between the icon and the label of every menu is also smaller.

  • #2043: Editing a dashboard no longer adds an xxs entry to its layout.

    The first change made in edit mode used to save an xxs layout that nobody had edited, copied from the nearest larger size and squeezed into 2 columns. The layout now only holds the sizes the dashboard was displayed or edited at. Dashboards that already have such an xxs entry keep it until someone edits or removes it.

  • A Map now requests a little more than the area it displays, and only asks again once the viewport leaves what was already loaded.

Bug fix

  • #1957: Creating an entry from a Collection Table form left the form on the first entry of the table instead of the one just created.

    Which entry was shown depended on the sort and the filters in use, so the user could end up viewing, and then editing, an unrelated entry. The new entry is now always displayed once saved, for forms configured in both Immediate and Deferred submit mode. When the sort places it outside the page currently loaded, it is fetched on its own so it can still be displayed.

  • #1979: The osp-communications, osp-media, osp-mqtt, osp-scripts and osp-variables modules were not reporting errors correctly to the callback processing logic.

    This caused the retry logic added in version 2.1.0 to break.

  • #2000: To avoid messages loss, the management of the RabbitMq queue was updated.

    These changes ensure that messages will be received even when a module is offline it will eventually receive the value published.

    The name of the queues are changed to avoid creating new one when a module restart.

    The following parameters were changed on all queues:

    • The time-to-live was increased from 10 minutes to 7 days.

    • The maximum messages present on the queue was reduce from unlimited to 100000. If the limit is reach the oldest message will be dropped.

    • The time-to-live of the messages was increased from 10 minutes to 7 days.

    • All queues are now durable (persistent across RabbitMq restart).

    See the upgrade guide for information about the requiered actions.

  • #2005: A RabbitMq long shutdown will not trigger a restart loop of all module.

  • #2009: The generated Compose file was validated when the configuration contained no local module (module.service).

    This triggered a validation error services must be a mapping during aggregation, particularly with regard to the Validation docker.

    Note

    This bug was introduced in the version 2.1.0-beta.1.

    You can avoid it by creating the file .onsphere/repository.conf with the content

    {
  "validation": {"orchestratorMode": "UNMANAGED"}
}

  • #2011: The clustered points of a Map could regroup on their own — a cluster moving sideways, a point appearing then disappearing — most visibly when one of their values changed.

  • #2011: The layers of a Map could briefly disappear and come back while panning or zooming the map.

    Note

    This bug was introduced in the version 2.1.0.

  • #2012: A collection input list could offer entries that no longer matched the collection.

    The list was filled from a streaming request whose results drifted from the stored entries, and it now reads a snapshot instead.

    A column filter rendered as COLLECTION also takes a search option, documented with the other column options and in view.web. It mirrors what the form component already offered through searchMethod and searchTerms: local filters the entries already received, remote sends the term to the collections module and matches it against the listed fields. A query returns at most 1000 entries, so remote is the only way to reach them all in a larger collection.

  • #2012: A journal placed in a form refused to open when its journalSettingsOverride described the table to display.

    The description had to repeat every setting of a saved view, including the ones a journal has no use for, and an incomplete one was rejected with a validation error in place of the journal. Listing the columns is enough now, and the settings left out take the values the journal was using anyway. A column that formats its content, such as a date column, also keeps that formatting instead of falling back to the raw value.

  • #2012: Editing a form opened in a modal could lose what had just been typed.

    The prompt fed the form its own data back on every change, which re-rendered the component and could restore the previous value of the field being edited. Fields declaring dependsOn are now also cleared when one of their dependencies changes, which until now only happened for forms displayed directly in a widget.

  • #2012: The input row of a journal placed in a form grew a scrollbar and clipped its content.

    The row was held to the height of the Add button beside it, so a validation message appearing under a field was cut off instead of opening the row. The row now takes the height it needs and the entry list gives back the space.

  • #2020: The history queries were slowing down depending on the total number of entries.

    The impact is particularly important if MongoDB cannot cache the collection History alarm view into the ram.

  • #2037: Searching in a journal opened in a form filtered the table behind it and wrote the search term in the url.

    A journal displayed in a form, in a side panel or in the detail of a row has no address of its own, so it wrote its search term and its page number under the name of the widget hosting it. The collection table or alarm table behind it then read them back as its own, and the browser kept every journal search in its history. A journal opened while the table was already filtered started on that same term. These journals no longer write anything in the url.

  • #2037: The disableUrlHistory setting of a Map had no effect.

    The widget kept writing its state in the url whatever the setting said, and it was the only widget offering the setting without honouring it. Turning it on now stops every parameter the map carries, its position and, where the map offers a floor picker, the selected floor. See the url parameters.

  • #2038: The Trigger triggerType available on the scripts was not converted properly into a string.

    This was causing the check trigger.triggerType === "PARAMETERS_SCRIPT" or trigger.triggerType === "VALUE_SCRIPT" to always fail.

  • #2039: A failed output of a fire-and-forget value was not retried when the value was triggered again before the retry.

    A new trigger cancelled the pending retries of the previous one, whatever the retention of the value. Only steady values still cancel them: for a fire-and-forget value, the output now completes its retries before processing the next trigger. Each output still processes its triggers one after the other, independently of the other outputs of the same value.

  • #2039: Regression script concurrent execution is not working as expected

    The priority queue was not handled correctly, preventing scripts with the same priority from being executed concurrently.

  • #2041: Some queries sent by the front-end did not match what the back-end expected, so parts of them were ignored or rejected.

    • The sorts of the collection form components, such as the Collection: Combo box and the Collection: Checkbox group, were ignored and the documents came back in their default order.

    • Collection form components ignored their filters in a form opened from a menu prompt or used as a journal custom input form. They listed every document of the collection and could not display their current value. In a journal custom input form, the filterId and the remote search were ignored as well.

    • A filter without an operation, for example set by a script calling appendFilter or applyFilter without the operation argument, made the Alarm Table, the Alarm History Table and the Collection Table fail to load. The filter now falls back to contains as documented.

    • An action of type REMOVE_STREAM_FROM_SELECTOR_MEDIA run from the front-end always failed and the stream stayed in its selector. See Control stream from action.

Security fix

  • Update Antmedia to 3.1.0

  • Update Docker compose to 5.5.1

  • Update Grafana image renderer to 5.12.3

  • Update Grafana to 13.1.6

  • Update Httpclient client to 5.6.4

  • Update MongoDB to 8.0.32

  • Update RabbitMq client to 5.36.0

New features

Maps floors URL

The floor selected in a Map is now carried in the url, so a link can open a dashboard directly on a given floor.

Documentation

  • #2041: The payload of a GENERATE_REPORT action documented templateId where the server reads template, so a report generated by following the documentation had no template. The optional locale is now documented as well. See Generating report.

  • The disableUrlHistory setting is now documented, with the url parameters and on each widget offering it: the Alarm Table, the Alarm History Table, the Collection Table, the Discovery and the Schematic. Turning it on stops the widget reading the parameters as well as writing them, so a link carrying them no longer opens the widget on that state. The Map is covered as well.

Version 2.1.1

Release date : September 2026

Improvements

  • #1941: Improved Basic I/O widget context by adding the following modifiers.

    • updateLabel: change the label displayed by the widget

    • updateIcon: change the icon displayed by the widget, whichever icon the value state would select

    • updateLayout: change the parts displayed by the widget and the order they are displayed in

    • updateLayoutDirection: change the direction the parts are displayed in, stacked from top to bottom (column) or side by side from left to right (row)

    • updateValueId: change the value displayed by the widget

    A modifier applied this way lives as long as the widget is displayed.

    The value type of a value reached through updateValueId is read from the value itself, while its access rights remain the ones the widget declares. A value that cannot be updated stays read-only whichever rights the widget declares.

    Added the Lay out and drive a basic I/O widget example, showing how the parts of a Basic Input Output Value are laid out and how its context changes them while the widget is displayed.

  • #1965: An error is now displayed where it happens instead of replacing everything around it. A form element, a dialog, the form of a collection table, a widget and the page itself each report on their own, so the rest of the interface stays usable.

    Each of them names what failed and offers to display it again. The technical detail sits behind an Error details toggle with a copy button, ready to attach to a support request. The new error display page describes what each scope replaces and how to display it again.

  • #1983: Several parts of the front-end stayed in english whatever the language selected in stack.cfg.

    Various language spelling corrections and improvements as well as overall widget translations.

  • A dashboard URL can carry ?kiosk to open the dashboard with the toolbar hidden, without configuring anything on the browser or on the user of the screen.

    ?kiosk=false displays the toolbar instead, which gives a maintenance link for a screen already left in kiosk mode.

    The parameter applies to the load it is given on and is not kept, so following a kiosk link once does not leave a browser in kiosk mode afterwards. Esc still leaves kiosk mode as before.

    See kiosk mode for more information.

  • Improved on Value Subscription context to support subscribing and unsubscribing to values with:

    • subscribeTo(value: string | string[]): subscribe to one or more values.

    • unsubscribeTo(value: string | string[]): unsubscribe to one or more values.

Bug fix

  • #1877: In the Discovery, a device could stay marked Loading after its answer had come back, and that answer was applied to another device of the device list. Same for a device that could not be reached, whose Error chip was shown on the wrong device. Happened once a root device was taken out of the selection while another one was still loaded.

  • #1946: Storage was not allowing to set the encoding when injecting text data.

    The methods storage.getTextData() and storage.createTextFile() have a new parameter charset.

  • #1950: Form collections component with dependsOn would not work on form displayed on modal, as the field with dependencies would never become available.

  • #1951: Form attachments component would not allow to upload more files with the button when one and only one element was present. The button would automatically open the preview modal for the file instead of showing the list and the add button if only one element was present.

  • #1952: BACnet hot-reload was not accepting the old notification class, even after the device had been deleted. This has now been fixed.

  • #1965: An AlarmsFilterBuilder configured with a view that is not a usable alarm view crashed the widget hosting the form. The view is now validated and the error reported on the element itself.

  • #1966: The build of the initial History alarm view was leading to OutOfMemory error after a migration from 1.4.x.

  • #1967: The accessedValues in the cache on Callback were not supporting a concurrent update for the value that triggered the callback. This caused an incoherent state with the condition and transformation.

    For example, the value root.trigger with the following callback could have return the previous state of the value during the transformation or condition.

    {
  "linkedOutputs": [
    {
      "outputId": "root.output",
      "condition": "asBoolean(root.trigger)",
      "transform": "asInteger(root.trigger)",
      "accessedValues": [
        "root.trigger"
      ]
    }
  ]
}

  • #1968: Fix an issue where a Value Subscription would allow to update a subscribed value configured as only READ.

  • #1977: The summary row of the tables was displaying the aggregate of a boolean column as a checkmark or a cross instead of a number, because the aggregate went through the formatter of the column. sum and avg are now displayed as numbers, min and max keep the display of the column.

  • #1978: A backgroundColor set on the Menu action widget had no effect. The configuration accepted the setting and the widget dropped it.

    The Refresh, Range and Limit also suffered from the same issue and now apply the color, given as a hex value, as a value reference or as a dark/light pair.

  • #1985: The publication of the module state was possibly failing due to a race condition.

  • #1988: Collection was not publishing some change properly which lead to out of date data present on the table.

    Note

    A reload of the table solve the problem for the version before this fix.

  • #1990: Improve the exception handling during a topology recovery to avoid useless restart of the module.

  • #1993: Collection changes on form were not properly shown. This happened when multiple updates occurred on the same document at short intervals.

  • #2002: The value scripts (owner.scripts) were not limited properly to only one concurrent execution.

    The resulting value was the outcome of the final script that finished when the execution time was not fixed (for example, an HTTP request).

  • #2004: The cache used for the accessedValues was not immutable during the execution of a script.

    This was causing the values accessed by the script to be updated during the script execution, instead of keeping the state they had when the script was scheduled. This regression was introduced in version 2.1.0.

  • A recipient declared by network address in a controller Recipient_List crashed the notification watchdog, silently preventing OnSphere from registering itself for events.

    A BACnetRecipient designates either a device identifier or a network address, and both forms are valid. OnSphere assumed the device form, so a single address form entry raised an error that aborted the whole recipient list synchronization before it could be written. The failure was silent in its effect: OnSphere never appeared in the Recipient_List of the device, no event notification was ever received from it, and the error repeated for every notification class at each watchdog cycle. See NotificationTo.

    Address form entries are now left untouched, since they can never designate OnSphere, and the skipped entry is logged at debug level to allow the offending recipient to be identified. The same guard was applied when OnSphere removes itself from a recipient list, where the error was not even logged.

  • BACnet object-identifier properties reported an object type of 12 for every object, whatever its real type.

    The type was taken from the ASN.1 application tag of the BACnetObjectIdentifier primitive, which is the constant 12, instead of from the object type itself. An analog-value was therefore announced as type 12 (loop), exactly like a notification-class. The consequence went beyond the display: because the write direction reads that field as a real object type, reading such a value and writing it back turned any object into a loop. Every format embedding an object identifier was affected, including ObjectIdentifierAdapterFormat, RecipientAdapterFormat, ObjectPropertyReferenceAdapterFormat, DeviceObjectReferenceAdapterFormat and AddressBindingAdapterFormat.

    A configuration written by copying an object type displayed by OnSphere was therefore targeting a loop on the network. Such a configuration is not broken by this fix, since the write direction is unchanged, but it is now revealed as incorrect and must be corrected.

Security fix

  • Update Keycloak to 26.7.3

Configuration changes

  • #1941: The Basic Input Output Value parameters showLabel, showIcon and showValue are replaced by layout, which also decides the order of the parts, and by layoutDirection, which stacks them from top to bottom (column) or side by side from left to right (row).

    Apply the composer patch 2.1.1 to migrate existing dashboards.

Documentation

  • The Schematic widget page has been reviewed against what the widget actually offers.

    • osp.user, holding the profile of the current user, and its ${osp.user} value reference form are now documented.

    • The osp-font-color binding, the osp-text-var and osp-fill-color-var aliases, and the osp.navigateTo and osp.alarmBySeverity aliases are now documented.

    • The context available to a binding, which is not the one of an interaction, and the two behaviours specific to osp-text are now described.

    • The operations the schematic exposes to the rest of the dashboard through osp.widgets(id) are now described.

    • The stylesheet setting, the dark/light form of schema and stylesheet, and the widget level variables setting are now mentioned.

    • The menu examples were naming a non existing osp-menu property. They now name osp-input-onclick-menu and osp-input-onrightclick-menu, which hold the array of menu items.

Version 2.1.0

Release date : August 2026

Improvements

  • #1762: Alarm history rebuild is now using the previously built state History alarm view to avoid useless work.

    This significantly reduce the load on MongoDB.

  • #1882: Improved Collection table widget context by adding the following modifiers.

    • updateFilter: change the current selected filter of the table

    • updateView: change the current selected view of the table

    • updateSchema: change the current selected schemas of the table.

  • #1922: An expression that cannot be parsed during dynamic evaluation is now retried as a parenthesized expression instead of resolving to undefined.

    This mainly concerns an interpolated object placed at the very beginning of an expression, such as ${itemId}.state === ${otherItemId}.LOCKED. Once interpolated, the leading object was read as a code block rather than as an object literal, which made the whole evaluation fail. Such an expression now evaluates as expected.

    Only expressions that do not parse are retried, and an expression failing both attempts still resolves to undefined.

  • RabbitMq metrics are enabled by default and available on port 9100. See the RabbitMq documentation for more information how to use them.

  • Removing an alarm which don't exist on live, will not fail the operation anymore. Only a message Serial didn't exist will be returned.

  • The Basic Input Output Value and Alarm Severity contexts now expose osp.updateValue to write a value, accepting either osp.updateValue(id, content) or osp.updateValue({id, content}).

    In addition, the Basic Input Output Value onClick operation is now evaluated through the standard dynamic evaluation pipeline, giving it the same context as the other operations of the widget, plus value holding the current widget value.

Bug fix

  • #1702: Media widget resize correctly the video to the available size.

  • #1773: Media streams were not synchronized properly with the Antmedia server.

  • #1845: Adding a throttle and a distinct to a Collections list request to avoid unnecessary messages and refresh to the front-end Collection Table widget.

  • #1863: RELATIVE_TIME table render no longer use timestamp 0 with empty value. It would show time since epoch rather than no value.

  • #1873: The order in which operations were carried out within a batch was not guaranteed by the Standard insertion.

    The fallback behavior of retrying the operations in the batch one at a time in the event of an error was not functioning correctly.

  • #1875: Alarms module was not able to execute operations correctly when the history entry corresponding to the alarm is exceeding 16MB in size.

  • #1878: The modules were processing the request one at the time.

    This can lead to unacknowledge message on Rabbit with message Acknowledgement from module to Rabbit.. and timeout when waiting for response by other module with message Observer invalidated because no response is received for request.

  • #1879: The Basic Input Output Value was not repainting when its value or the active theme changed, leaving stale content and colors on screen.

  • #1879: The showColumn, showFilter and showSummary settings of the Alarm Table, Alarm History Table and Collection Table widgets were not carried into the resolved view, and the summary was hidden before the columns were known.

  • #1880: The script was not correctly subscribing to all callbacks if an output was targeted by multiple callbacks.

    Note

    This bug was introduced in version 2.1.0-beta.1.

  • #1881: Modbus was not handling value message for other module properly.

    This was introduced by #1700.

  • #1883: authorization.keycloak was not loading the accessed values properly.

  • #1887: Enforce uniqueness of apiKey for users.keycloak.

    Using a non-unique API key can cause problems when applying permissions to a request.

  • #1888: Modbus was not subscribing correctly to accessed values declared in callback.ospp.

    This was causing incorrect evaluation of the condition and transformation.

  • #1896: During a topology recovery of the rabbit state initiated by a module, some errors were not handled properly which cause an excess use of channels.

  • #1924: The internal data of the Form was not properly cleaned, the initial values of the form being re-applied on top of every change.

    A property emptied by the user, by a script or by a menu was silently restored to its initial value, and data could be shared between two successive instances of the same form. The initial values are now applied once, when the form data is created or when a document is loaded, and the form is fully recreated whenever its definition changes.

  • #1926: Storage and Alarms manipulation controllers were not wrapped correctly into the executionResult.

    The following methods are impacted:

Security fix

  • Update Docker compose to 5.4.0

  • Update Grafana image renderer to 5.12.0

  • Update Grafana to 13.1.3

  • Update Jackson to 2.21.5

  • Update Jetty to 12.1.10

  • Update Keycloak client to 26.0.12

  • Update MongoDB driver to 5.10.0

  • Update MongoDB to 8.0.28

  • Update netty to 4.2.17

  • Update the front-end dependencies, most notably replacing the deprecated i18next-xhr-backend with i18next-http-backend.

New features

Update a collection record with a custom filter - #1734

The Collections script API now features a updateWithCustomFilter method. It updates the single record matching a custom MongoDB filter by applying a list of field-level updates.

Unlike updateMany, the filter must match exactly one record: the request fails when no record matches and fails as well when several records match. Only active records readable by the caller are considered.

Startup, Liveness and Readiness probes are now configurable - #1805

The helm chart allow to configure of the Startup, Liveness and Readiness probes for each modules.

Note

osp-mongo and osp-configuration-dispatcher have some probes already configured.

Schematic full cell state from a single value

The Schematic osp-state binding now drives the whole state of a cell from a single value. See State binding.

The binding accepts either a JSON string or an object, whose keys are applied to the cell:

  • visible: shows or hides the cell.

  • text: replaces the cell label.

  • x, y, width, height: moves and resizes the cell.

  • image: replaces the cell image, including data: URIs.

  • any other key is applied as an mxGraph style (fillColor, strokeColor, opacity, ...).

Each key accepts either a literal value or a conversion object mapping a content to one of several possible values.

All keys are applied in a single graph update, so a state change repaints the cell once. A value that is neither an object nor parsable JSON is ignored instead of interrupting the rendering.

Define default and authorized languages - #1650

stack.cfg now features a language property inside the theme configuration.

This allow to set the default language as well as the authorized languages for the front-end. Currently, the available languages are english, french and german. The user can still change the language and that choice is still persisted, unless there is only one authorized language configured.

Storage upload prompt improvements - #1868

The upload prompt used to upload osp-storage related files got two improvements:

  • Two new settings for upload.ospp were added to improve the control over file uploads timeouts.

    • timeoutMs: Allow to define a timeout in milliseconds for each individual file upload. Previously, files uploaded from the front-end add a fix timeout of 10 seconds. Ten seconds is now the default value but can be changed with this setting.

    • batchSize: Previously, when uploading a large number of files, every upload was done at the same time. However, web browsers usually put a limit on the number of simultaneous requests to a single domain, meaning that the other requests were queued until a connection opens. While the request was queued, the timeout was still running, which led to timeout errors because the requests were queued for too long. To prevent this, files are now uploaded as chunks of size defined by this setting (default is 1) and chunks are handled sequentially. This allows uploading multiple files without having issues related to timeout because of time waiting in a queue. batchSize should not be too high because otherwise we fallback to the same issue. Web browsers usually limit requests around 6 max requests so we recommend you not to exceed this value.

  • A new setting showPreview for Upload files prompts was added. This setting allows to load or not a preview of the successfully uploaded files. Previously, this was always true even though only files likes images, videos and PDFs actually have a working preview currently. Every other type of file just displays a generic info box containing the file name. Disabling the preview when you expect files that are not compatible reduces the number of queries done because for the preview a request needs to be done to retrieve the file content.

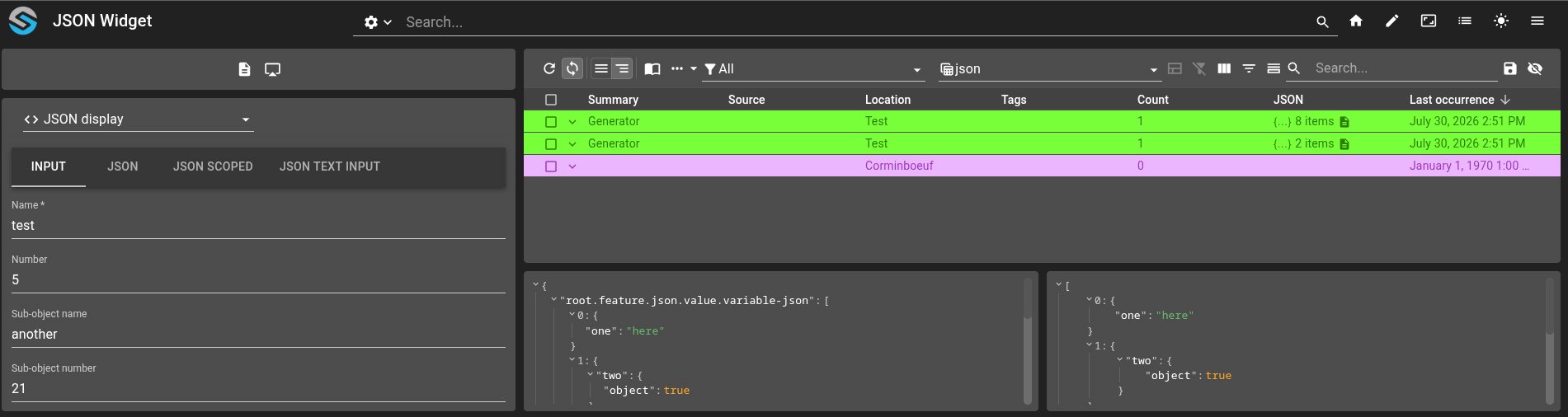

Render JSON in the front-end — widget, table cell, form component and menu output - #1782

Raw JSON values can now be rendered anywhere in the front-end through a shared, theme-aware JSON viewer (collapsible tree, syntax highlighting and optional clipboard copy). The same viewer is exposed in four places:

  • JSON widget : the new Json widget displays a JSON value on a dashboard. Its content can be provided statically in the configuration or set at runtime from a menu, a script or another widget through the setJson widget-context action.

  • JSON table render : a column can now use the JSON render. Objects and arrays are shown as a compact summary in the cell and expanded in a modal when clicked.

  • JSON form component : the new Json form component displays a read-only JSON view of a bound property inside a form.

  • JSON menu output : the new json output operation opens a modal displaying a JSON payload produced during menu evaluation.

The viewer display options (collapsed, displayDataTypes, objectSortKeys, ...) and its appearance (style CSS variables, with optional light / dark overrides) are shared across the four surfaces.

../../_images/osp-json-widget-example.png

Helm changes

  • #1893: The users initialization was not waiting for the replicaset to be ready.

  • #1894: Certificate generation was not failing properly when the secret name was too long.

    The generation was successful but the pods were not able to start.

  • #1917: Add public rights certificate only on module that need it.

Other changes

  • #1818: tsconfig.json is now importing the default configuration of the types from tsconfig.onsphere.json instead of defining it.

    This allow the integrator to override them easily by editing tsconfig.json.

  • #1885: Added the environment variable ALLOW_VERSION_MISMATCH to all module.

    This allows you to disable the verification of the version by the module introduced by Module check configuration version during update - #1802.

  • Prevent authentication filter from printing logs and exceptions upon webhook access with an invalid JWT token.

Version 2.1.0-beta.2

Release date : July 2026

Improvements

Bug fix

  • #1786: BoxLayout widget sizing now relies on CSS flex-basis instead of a size measured in JavaScript, fixing inconsistent sizing of its children.

  • #1820: The alarm and collection tables could crash while rendering the detail panel or certain cell types when the underlying data was missing or malformed; rendering is now guarded against these cases.

  • #1820: Relative time displays (such as the alarm table RELATIVE_TIME column) now refresh immediately when their value changes instead of waiting up to five seconds for the next tick.

  • #1820: Copying a non-text value (such as an object or a number) now works as expected; objects are serialized to JSON and numbers are converted to text before being placed on the clipboard.

  • #1733: Properly handle specific entry ID fetching for Collection Table should the document not be present in current table.

  • #1859: Issues with how message from WebSocket were handled was preventing actions to receive the result of their request. Therefore, no actions output were triggered correctly.

  • #1858: Front-end was not cleaning request properly on form.

  • #1864: Alarm archive manager was not ignoring collection generated during the migration process.

  • #1865: Local storage on Collection Table was not keeping user modification on table columns.

  • #1867: Tables SEVERITY render support ItemId reference.

  • #1872: After navigation, the Map widget, might crashes with the following error: Cannot read property of undefined (reading 'style').

  • #1700: Values retransmissions are now separated by module to prevent unexpected output and script execution.

    The callbacks (for a script only if the triggerModes contains RETRANSMISSION) were re-triggered when a dashboard or module was loaded if the value was needed by it.

  • #1873: The order in which operations were carried out within a batch was not guaranteed by the Standard insertion.

    This can lead to inverted creation when the same serial is present multiple times on the same batch. For example, the alarm at 10:40:00 will be inserted after the one at 10:40:02.

  • #1874: menu.web was not validated correctly. Some reference inside the inputs/outputs were not checked during the aggregation.

  • #1762: Alarm history rebuild was too slow. A pre computed History alarm view was created to have a more reactive history display.

    The history view is updated at an interval of 2 seconds by default. This interval can be configured on module.alarms with the field historyReconstructionInterval.

  • #1871: Fixed menu.web items using blockFrontInteractionWhileExecuting when the operation failed, the backdrop never disappeared, requiring a browser refresh to clear it.

  • #1869: Properly clean Alarm Table and Alarm History Table selection when elements exits sub-group.

Security fix

  • Update Grafana image renderer to 5.9.1

  • Update MongoDB to 8.0.26

  • Update Mysql to 8.4.10

  • Update Keycloak to 26.6.4

Helm changes

Version 2.1.0-beta.1

Release date : July 2026

Upgrading warnings

Warning

Since version 2.0.0, the upgrade guide is available in a dedicated chapter. See upgrade guide.

Bug fix

  • #1696: Value with pre-transform/post-transform now need the setting of the inputType. See Transformation

  • #1719: The maximum length of an ItemId is now strictly limited to 255 characters. This avoids messages that cannot be sent on RabbitMQ.

  • #1729: Regression the certificates where not loaded from cacerts as expected for API service.

  • #1729: Add preemptive authentication for user/password for api-service.ospp.

  • #1735: Container shutdown was slow due to improper messaging termination.

  • #1735: Resolved a minor memory leak.

  • #1745: Config controller return config.Dashboard() and config.Severity() object usable in JS.

  • #1814: The configuration dispatcher could start very slowly on large repositories when a version upgrade is performed, this is fixed now.

  • Composer is now backward-compatible with templates generated by the previous version (prior to 2.0); the cleanup process, which previously did not work, has been fixed.

  • Composer could previously fail to clean certain directories due to race conditions when removing all templates; this issue has been resolved. Avoiding a re-run of cleanup task.

  • Alarms pre-insertion rules where not cloning alarms properly which lead to change propagation between operations.

  • Alarms create archive indexes in the background.

  • #1746: Fixed multiple issues related to WebSocket usage with RabbitMQ stream requests. In certain edge cases—particularly when switching rapidly between two dashboards using the same collection, no data was sent to the frontend until a timeout occurred.

  • #1395: The preview template was not working as expected with variables file inclusion.

  • Fixed a caching issue in VSCode where Nunjucks file inclusions were not refreshed; the cache is now properly reloaded.

  • #1752: Standardize JSON formatting in the composer to ensure consistent file structure.

  • #1775: Composer settings file association are stable.

  • #1775: Composer exports integrator settings if defined in settings.json.

  • #1742: The navigation widget was not working when configured on a user’s main dashboard (home page).

  • #1740: Prevent the license pop-up from appearing too frequently (once every 4 hours)

  • #1747: WebSocket now uses a binary format by default instead of a text format, providing a slight performance improvement.

    Text messages can be re-enabled either by setting osp.config.enable.websocket.text-message to true in the browser’s local storage, or by forcing text mode in the module.web using the websocketForceTextMessage option.

  • #1712: Fixed an issue where the Execution script controller raised catchable JavaScript exceptions.

    The execution termination mechanism has been updated to ensure scripts are halted immediately without allowing the guest language to intercept the interruption via try-catch blocks.

  • #1783: Files in .onsphere directory are now detected when VSCode is launched.

  • #1769: The field iterateOn is now able to use data from the CSV.

  • #1730: The password field in the OSP Toolbox is now called Encryption key.

  • #1329: When a patch is applied with composer on a configuration with templates, a warning is now displayed.

  • #1792: The template cleaner now properly clean empty directories.

  • #1795: .nunjucks extension is now associated with the file without the .nunjucks extension.

  • #1793: Alarms ignore collection was not cleanup automatically.

    A ignore collection configuration was added to module.alarms to set the time to live of the collection. The default value is 60 days.

  • #1791: API service skip the response filtering and validation step when a non 2XX http code is reported.

    This allow the user to see the real error in case the format doesn’t match the provided schema.

  • #1797: Create a new history entry if it doesn’t exist during the migration.

    This avoid error like Serial was not found on history after the migration.

  • #1813 : Fixed multiples spurious warnings emitted at the starting of multiples modules

  • #1822 : Fixed an issue where hot-reload (experimental) was evicting cache entries upon reload. Values relying solely on a default value would never pick up their updated value; other values would only be refreshed on the next change.

  • #1837: The dispatcher did not publish the updated configuration to all modules over RabbitMQ after a configuration change, as expected. This caused a delay before the heartbeat detected the outdated configuration, and the new configuration was sent even when the dispatcher was about to restart, leading to a longer downtime than expected.

  • #1838: The dispatcher did not allow enough time to update the RabbitMQ users when it was updated itself, leading to edge cases where authentication failed for some modules. The system recovered automatically on the dispatcher’s next start, but unusual logs and behavior could occur in the meantime.

  • #1841: The ValueScript type for myself is now supported in script-writing types, enabling autocompletion.

  • #1821: Fixed an issue where docker-validation (run from Composer) attempted to validate osp.vault even though the required secrets are not available locally. The validation now uses placeholder plaintext values, allowing the validation step to complete successfully.

Security fix

  • Update Ubuntu image to 24.04

  • Update openssl

  • Update snmp-pp

  • Update Keycloak to 26.6.3

    Warning

    A manual migration step is required. See Keycloak update for more informations.

  • Tighten valid redirect URLs for the Keycloak client

    Redirection to https://<hostname>:<port>/* as defined in stack.cfg is now only allowed for the Dashboard and Grafana client.

  • PKCE challenge is enforced for the Dashboard client.

  • Disable direct access grant for Dashboard and Grafana client.

  • Harden script execution context and option for module.scripts and module.keycloak. The options allowNativeAccess allowHostClassLoading and allowInnerContextOptions in executionConfiguration are deleted.

  • Update Antmedia to 3.0.3

  • Update RabbitMQ to 4.3.1

  • Update MongoDB to 8.0.23

New features

Webhook return code, script response and HTTP methods - #1823

A Webhook endpoint now offers more control over the request handling:

See webhooks for details.

Alarms value ON_ALARM split created and modified - #1631

The alarms value ON_ALARM now split created and modified alarms.

The content of the ON_ALARM value is the following (as a string):

{
  "created": [
    {
      "serial": "serial-created",
      "severity": 200
    }
  ],
  "modified": [
    {
      "serial": "serial-modified",
      "severity": 300
    }
  ],
  "removed": [
    {
      "serial": "serial-removed"
    }
  ]
}

Warning

To simplify the migration, the script using this can merge the two array to keep the same logic.

const triggerContent = JSON.parse(trigger.content);

const modified = [...(triggerContent.created), ...(triggerContent.modified)];
const removed = triggerContent.removed;

Script execution scheduling - #1734

The osp-scripts module now uses a priority-based scheduling system, giving fine-grained control over how scripts are queued and executed concurrently. New configuration parameters are available in owner.scripts and detached.scripts:

  • priority: Execution priority of the script. Lower values run first. Scripts sharing the same priority are dispatched in strict arrival order (FIFO).

  • maxConcurrentExecutions: Maximum number of executions running simultaneously for this script.

  • maxInFlightExecutions: Maximum number of executions kept in memory (queued and running combined). When this limit is reached, the backpressure strategy is applied.

  • backpressureStrategy: Defines how executions are dropped when maxInFlightExecutions is exceeded.

  • validity: Execution time-to-live. If an execution has not started within the configured duration, it is silently discarded.

In addition, detached scripts now support:

  • useTriggerAsId: When enabled, each distinct trigger value is treated as an independent execution stream, with its own queue, concurrency limit, and priority slot within the shared pipeline.

Module check configuration version during update - #1802

The module validate that the configuration version match its version before updating.

This avoids any unwanted downtime during an OnSphere update.

Note

If a module is restarted by the orchestrator, it might not be able to load the configuration until the update is done.

The helm chart allow to set a different version for the dispatcher to allow an update with less downtime by mimicking the behavior of the swarm update for the Upgrading unmanaged configuration. See Global Configuration.

Validation of Expression Language - #1718

Expressions defined in value.ospp, within both preTransform and postTransform, are now validated during the aggregation phase.

This validation covers:

  • Syntax correctness of the expression

  • Return type compliance

  • Consistency of referenced variable names within the expression

Refer to Transformation for details on transformation behavior

Map points coming directly from alarms and collections - #1707

The maps module can now stream GeoJSON features directly from collection documents and live alarms. The Map widget renders those collection-backed and alarm-backed layers alongside existing static geo.maps layers.

Supported source types:

  • COLLECTIONS streams live documents from the collections module and reads the GeoJSON object from the configured geometry field path.

  • ALARMS streams live alarms directly from osp-alarms and reads the GeoJSON object from the configured alarm field path.

  • Those dynamic sources can be exposed through the same map widget request flow as static layers.

  • Those dynamic sources can also be set to use alongside a floor setting Display floor-filtered mixed map sources.

See Geographical aggregation, Display collection-backed layers on map, and Display offline live alarm layers on map.

Controller autocompletion in scripts

Scripts now feature autocompletion for API Script

Highlights:

  • Autocompletion suggests controller methods directly in scripts

  • Function parameters are type-checked visually, incorrect types are underlined in red with an explanation

  • Inline documentation appears alongside function suggestions, helping prevent common mistakes

Note

Java-to-JavaScript type mapping is in best effort mode, this feature only affects editor display and does not enforce validation on dispatcher push.

Alarms manipulation in scripts can retrieve existing alarms

Alarms manipulation provide new methods to access existing alarms.

CSV Controller - CSV to JSON parsing

A new CSV allows parsing CSV content into JSON in scripts.

Supports:

Storage Controller - Read and write file from osp-storage

A new Storage controller allows to access the document stored inside osp-storage.

Supports:

Collection Controller - New method are added

The Collections controller has new method to improve its capability.

InfluxDB Tasks - Flux-based task management

The analytics module now supports managing InfluxDB tasks using the task.analytics configuration file.

Tasks are defined using Flux scripts and executed directly by InfluxDB.

All tasks created by OnSphere are automatically prefixed with osp- in InfluxDB. By default, the analytics module option disableOspOrphanTasks is enabled. Any task prefixed with osp- that is not declared in the configuration will be automatically disabled.

Restarting or reloading a module will not publish error immediately - #1676

Previously, when a module restart, the value uninitialized was published immediately. This cause unwanted trigger of callback and script.

Similarly, when a error is publish during the start of the module, it was sent immediately.

The new behavior hold both value for at most the timeout configured on the module or by value. The default timeout is one minute.

Note

When a value without an error is publish, the timeout is stopped and from this moment on, the next error will be published immediately.

Callback retry - #1675

The callback.ospp allow to retry the output when a failure is detected. See Callback for more information.

Script Encoder - Direct UTF-8 String Conversion

The script encoder previously supported multi-base encoding/decoding using byte array inputs and outputs. It now also supports direct conversion between UTF-8 strings and base-encoded strings.

Supported bases: base16, base32, and base64.

Script Http client support NTLM

The HTTP requests allow to set credentials for NTLM used for microsoft suite.

Script controllers made available in keycloak scripts engine

BACnet whole module refactoring

The BACnet module has been fully refactored to support hot-reload and to handle a wider range of hardware types, with certain limitations.

Hot-reload : BACnet now supports hot-reload for all external parameters (modifying the local-device will trigger a module restart).

Supervision : The supervision of devices now supports multiple methods. See documentation.

Write : The module can now write to most BACnet properties and object types, instead of being limited to presentValue.

Read : The module can now read a broader range of data types and return results in JSON format, enabling improved control and easier parsing within scripts.

Auto-subscribe to NotificationClass : An option is now available to automatically subscribe to all NotificationClass objects based on configuration rules, allowing the device to be used as a trusted source.

Auto-subscribe to Properties : An option is now available to automatically subscribe to all properties based on configuration rules, allowing the device to be used as a trusted source.

Allowing a lot of new configuration parameters for devices : The configuration of modules and devices has been enhanced to provide greater control over methods, timeouts, and device support, enabling improved customization.

Change of the subscribe to NotificationClass : Before this release, osp-bacnet would always register itself as a destination in the NotificationClass. This behavior can now be disabled, as some devices only support static registration.

Discovery

BACnet discovery has received several improvements :

  • More readable property values

  • Addition of integer representations of properties

  • Addition of value types

See Discovery for details.

Documentation The documentation is totally rewritten.

Accepting null state for values #1696

Values can now have a null state, indicating that the value is “unset” on the device. Note that this state is supported by only a few protocols, such as BACnet. It is recommended to avoid using null values unless necessary, as they are invalid in most commands. For example, writing a null value in Modbus is meaningless and will result in an error. See Value concept for more info.

Hide pagination component for alarms and collections table - #1749

You can now disable the pagination component on the bottom of a table. You can do it by either using the setting disablePagination or by limiting the number of pageSizes to one.

This is only applied to Collection Table and Alarm History Table. The Alarm Table table, which represent the live current alarms never displays any pagination component.

Support system CA by default - #1722

Previously, the following modules did not use the CA certificates provided by the Docker image by default. This required manually importing all external certificates, resulting in complex certificate management or setting an option.

The system CA is now loaded automatically by default. As a consequence, several configuration options that enabled or disabled this behavior have been removed.

Modules impacted:

VScode composer - usage of diagnostic

Validation errors are now reported as diagnostic entries in VSCode. This feature is still partially implemented and currently highlights only the first line of the affected file. If initial testing is successful, the system will be extended to support and display more accurate errors.

API service support custom header authentication - #1784

A custom auth header can be injected into the request.

Beta features

Warning

Beta version This feature is currently in beta. It may change in a future version without prior notice. See the Beta Features page for the full list of beta features and their planned release. If you’re using this feature, we encourage you to share your feedback to help with the evaluation process.

Helm allow to define annotations to scrap metrics and logs - #1819

The helm Modules Configuration (modulesConfiguration) allow to set annotations to automatically scrap logs and metrics.

  • observability.metrics.enabled: Set the annotations observability.onsphere.ch/metrics-enabled and observability.onsphere.ch/metrics-port when enabled. The port 9100 is also opened on the pod.

  • observability.logs.enabled: Set the annotations observability.onsphere.ch/logs-enabled when enabled.

  • customAnnotations: Inject custom annotations.

Note

For non conventional requirement, the metrics flag can be set to false and the customAnnotations and ports of type LOCAL can be used.

Warning

The metrics flag was previously creating a service to expose the port 9100 of the pod. This is now removed.

Map widget controls - #1674

It is now possible to add a menu in the map and interact with for multiple use cases (for example adding an alarm at a given location or interacting with the map context).

Repository and Validation Configuration Enhancements

It is now possible to define and pre-configure environments and validation settings for repositories.

  • Environment can be automatically selected when executing playbooks or presented as a pre-selected element for manual choice

  • Validation settings allow specifying log levels and orchestrator modes

Composer template - execution rule

Playbook Environment Execution (all)

  • QuickPick now shows all available environments for playbooks with multiple environments.

  • Playbooks execute for all environments whose name matches the user selection.

  • Ensures only valid environments are executed and all options are visible to the user.

Composer template - improvement

  • Description fields are now supported in most parts of templating. These fields are for documentation purposes only and have no functional effect.

  • Performance improvement: CSV files are now loaded line by line during processing, reducing RAM usage. This does not apply to variables, as Nunjucks requires all variables to be available for processing.

  • The CSV parsing have a lots of news options :

    • Support for sourceEncoding

    • Support for comment

    • Support for hardcoded headers columns

  • Add method for converting to camelCase, snakeCase,pascalCase, kebabCase and onlyAlphaAndNumberDash see documentation

  • Adding a new variable named templateEnvironment to represent the currently running environment.

  • Variables can now be conditionally included.

  • Adding a function to convert from itemId to relative path

  • Adding a function to convert from relativePath to ItemId

Module restart handling

This change ensures that the Kubernetes or OpenShift cluster does not trigger the crashLoopTimeout when multiple configuration updates are applied.

This also allows modules to restart more quickly when their configuration changes.

Note

This is not the experimental hot-reload. We just avoid recreating the container. The application restart completely.

The environment variable USE_LEGACY_RESTART can be set to fallback the previous restart behavior.

VSCode Composer - Template Security

The composer now allows configuring an environment safeguard to prevent pushing a template built for one environment (e.g. TEST) to another (e.g. PROD).

See doc for more details.

Attachments on alarms and collections with new module osp-storage - #1649

Attachments are files of any type that can be uploaded and attached to either an alarm or a collection entry. They can then be visualize and retrieved from any front-end widget that can display alarms/collections.

These attachments are uploaded and downloaded through the osp-storage module.

Currently, storage attachments can be uploaded / retrieved with the following:

  • Front-end: front-end widgets that displays alarms or collections and menus as well are able to both upload and download files. For alarms, attachments manipulation is done through menus and journal entries. Collections on the other hand allow more interactions with the use of forms and new ui components.

  • Reports: PDF reports can contain images that are retrieved from osp-storage. Only PDF reports are currently able to display them. Other reports type like a plain HTML report won’t allow to retrieve and interpret anything.

For a more detail explanation of this new feature, take a look at Attachment documentation.

If you want to use attachments on front-end, take an additional look at the following links:

If you want to use attachments within reports, take an additional look at the report documentation.

Collection table - List of user currently subscribed to a collection entry - #1649

The Collection Table now offers a way to know the users that are currently viewing/editing an entry of the table. This information is only visible if you are viewing/editing the same entry as well.

On the right-side of the toolbar, a new component gives you the list of users with their usernames and the last time they updated this entry.

This gives you an insight on who is currently subscribed to the same entry as you are, which can be helpful for when you may have conflicts with your changes after someone else also edited this entry.

Features graduated from beta

The following features were previously listed as beta and are now considered stable as of this release. They are no longer subject to breaking changes without prior notice.

  • Audit Logs — Dedicated logs tracking user interactions, stored in a specific MongoDB collection. Available since 1.4.0.

  • Grafana — Embed and interact with Grafana dashboards directly from OnSphere. Available since 2.0.0.

  • Object Browser — Navigate through the OnSphere configuration and display all defined values with live value updates. Available since 1.1.0.

  • PDF Viewer — Open in another window — Ability to detach the PDF Viewer widget content into a separate browser window. Available since 1.2.0.

  • PTZ Controller — Widget to control Pan-Tilt-Zoom cameras directly from an OnSphere dashboard. Available since 1.2.0.

  • Theme Overriding — Override the OnSphere theme using Material UI customization parameters defined in stack.cfg. Available since 1.4.0.

  • Vault — Central storage for passwords and secrets that can be retrieved in scripts. Available since 2.0.0.

  • API service — Usage of external API (REST). Available since 1.4.0.

Configuration changes

  • osp-mysql memory footprint reduced — new OSP_MYSQL_* tuning variables

    The MySQL container now generates a tuning file at startup from a set of OSP_MYSQL_* environment variables. The default values are sized for the small Keycloak database that OnSphere hosts internally, and cut idle RAM usage significantly compared to the MySQL stock defaults (from ~450MB to 150MB).

    All variables are listed and described in the osp-mysql documentation and are pre-populated in the default module.service, making them easy to override per deployment.

  • Add a new environment variable CUSTOM_JVM_OPTIONS to set JVM options.

    Note

    In a containerized environment with RAM limits enable, the default JVM configuration will only use 25% of the RAM limit as the maximum heap space. Using this option to set -XX:MaxRAMPercentage=75.0 will increase the maximum heap size to 75% of the limit.

    Warning

    This should not be set if there is no limit enabled.

  • #1714: Json configuration file now support C/C++/Java comment style.

    {
  // TODO: rewrite the description
  "description": "",
  "name": "My value",
  "type": "BOOLEAN"
}

  • #1652: The output format of configuration validation (git push and validator) was changed to improve its readability.

    The following example show the new format.

    {
  "ERROR" : [
    "error",
    {
      "message" : {
        "description" : "A required file is missing",
        "fileOnError" : "/tmp/test/root/value.ospp",
        "missingFile" : "/tmp/test/root/dashboard.view",
        "type" : "MISSING_FILE"
      }
    }
  ],
  "WARNING" : [
    "warn"
  ],
  "INFO" : [
    "info"
  ]
}

  • #1394: Update enable event type to generate value from Keycloak event.

    On realm.keycloak, the new value of realm.enabledEventTypes is

    [
  "AUTHREQID_TO_TOKEN_ERROR",
  "AUTHREQID_TO_TOKEN",
  "CLIENT_DELETE_ERROR",
  "CLIENT_DELETE",
  "CLIENT_INFO_ERROR",
  "CLIENT_INFO",
  "CLIENT_INITIATED_ACCOUNT_LINKING_ERROR",
  "CLIENT_INITIATED_ACCOUNT_LINKING",
  "CLIENT_LOGIN_ERROR",
  "CLIENT_LOGIN",
  "CLIENT_REGISTER_ERROR",
  "CLIENT_REGISTER",
  "CLIENT_UPDATE_ERROR",
  "CLIENT_UPDATE",
  "CODE_TO_TOKEN_ERROR",
  "CODE_TO_TOKEN",
  "CUSTOM_REQUIRED_ACTION_ERROR",
  "CUSTOM_REQUIRED_ACTION",
  "DELETE_ACCOUNT_ERROR",
  "DELETE_ACCOUNT",
  "EXECUTE_ACTION_TOKEN_ERROR",
  "EXECUTE_ACTION_TOKEN",
  "EXECUTE_ACTIONS_ERROR",
  "EXECUTE_ACTIONS",
  "FEDERATED_IDENTITY_LINK_ERROR",
  "FEDERATED_IDENTITY_LINK",
  "FEDERATED_IDENTITY_OVERRIDE_LINK_ERROR",
  "FEDERATED_IDENTITY_OVERRIDE_LINK",
  "GRANT_CONSENT_ERROR",
  "GRANT_CONSENT",
  "IDENTITY_PROVIDER_FIRST_LOGIN_ERROR",
  "IDENTITY_PROVIDER_FIRST_LOGIN",
  "IDENTITY_PROVIDER_LINK_ACCOUNT_ERROR",
  "IDENTITY_PROVIDER_LINK_ACCOUNT",
  "IDENTITY_PROVIDER_LOGIN_ERROR",
  "IDENTITY_PROVIDER_LOGIN",
  "IDENTITY_PROVIDER_POST_LOGIN_ERROR",
  "IDENTITY_PROVIDER_POST_LOGIN",
  "IDENTITY_PROVIDER_RESPONSE_ERROR",
  "IDENTITY_PROVIDER_RESPONSE",
  "IDENTITY_PROVIDER_RETRIEVE_TOKEN_ERROR",
  "IDENTITY_PROVIDER_RETRIEVE_TOKEN",
  "IMPERSONATE_ERROR",
  "IMPERSONATE",
  "INTROSPECT_TOKEN_ERROR",
  "INTROSPECT_TOKEN",
  "INVALID_SIGNATURE_ERROR",
  "INVALID_SIGNATURE",
  "INVITE_ORG_ERROR",
  "INVITE_ORG",
  "LOGIN_ERROR",
  "LOGIN",
  "LOGOUT_ERROR",
  "LOGOUT",
  "OAUTH2_DEVICE_AUTH_ERROR",
  "OAUTH2_DEVICE_AUTH",
  "OAUTH2_DEVICE_CODE_TO_TOKEN_ERROR",
  "OAUTH2_DEVICE_CODE_TO_TOKEN",
  "OAUTH2_DEVICE_VERIFY_USER_CODE_ERROR",
  "OAUTH2_DEVICE_VERIFY_USER_CODE",
  "OAUTH2_EXTENSION_GRANT_ERROR",
  "OAUTH2_EXTENSION_GRANT",
  "PERMISSION_TOKEN_ERROR",
  "PERMISSION_TOKEN",
  "PUSHED_AUTHORIZATION_REQUEST_ERROR",
  "PUSHED_AUTHORIZATION_REQUEST",
  "REFRESH_TOKEN_ERROR",
  "REFRESH_TOKEN",
  "REGISTER_ERROR",
  "REGISTER_NODE_ERROR",
  "REGISTER_NODE",
  "REGISTER",
  "REMOVE_CREDENTIAL_ERROR",
  "REMOVE_CREDENTIAL",
  "REMOVE_FEDERATED_IDENTITY_ERROR",
  "REMOVE_FEDERATED_IDENTITY",
  "REMOVE_TOTP_ERROR",
  "REMOVE_TOTP",
  "RESET_PASSWORD_ERROR",
  "RESET_PASSWORD",
  "RESTART_AUTHENTICATION_ERROR",
  "RESTART_AUTHENTICATION",
  "REVOKE_GRANT_ERROR",
  "REVOKE_GRANT",
  "SEND_IDENTITY_PROVIDER_LINK_ERROR",
  "SEND_IDENTITY_PROVIDER_LINK",
  "SEND_RESET_PASSWORD_ERROR",
  "SEND_RESET_PASSWORD",
  "SEND_VERIFY_EMAIL_ERROR",
  "SEND_VERIFY_EMAIL",
  "TOKEN_EXCHANGE_ERROR",
  "TOKEN_EXCHANGE",
  "UNREGISTER_NODE_ERROR",
  "UNREGISTER_NODE",
  "UPDATE_CONSENT_ERROR",
  "UPDATE_CONSENT",
  "UPDATE_CREDENTIAL_ERROR",
  "UPDATE_CREDENTIAL",
  "UPDATE_EMAIL_ERROR",
  "UPDATE_EMAIL",
  "UPDATE_PASSWORD_ERROR",
  "UPDATE_PASSWORD",
  "UPDATE_PROFILE_ERROR",
  "UPDATE_PROFILE",
  "UPDATE_TOTP_ERROR",
  "UPDATE_TOTP",
  "USER_DISABLED_BY_PERMANENT_LOCKOUT_ERROR",
  "USER_DISABLED_BY_PERMANENT_LOCKOUT",
  "USER_DISABLED_BY_TEMPORARY_LOCKOUT_ERROR",
  "USER_DISABLED_BY_TEMPORARY_LOCKOUT",
  "USER_INFO_REQUEST_ERROR",
  "USER_INFO_REQUEST",
  "VALIDATE_ACCESS_TOKEN_ERROR",
  "VALIDATE_ACCESS_TOKEN",
  "VERIFY_EMAIL_ERROR",
  "VERIFY_EMAIL",
  "VERIFY_PROFILE_ERROR",
  "VERIFY_PROFILE"
]

  • #1394: Remove default offline_access for account. This avoid generating long live token for all user.

    If realm.keycloak is define on the configuration, you can add:

    • On realm.roles.realm:

      {
  "name": "default-roles-onsphere",
  "description": "${role_default-roles}",
  "composite": true,
  "composites": {
    "realm": [
      "uma_authorization"
    ],
    "client": {
      "account": [
        "view-profile",
        "manage-account"
      ]
    }
  },
  "clientRole": false,
  "attributes": {}
}

    • On realm.defaultRole:

      {
  "name": "default-roles-onsphere",
  "description": "${role_default-roles}",
  "composite": true,
  "clientRole": false
}

  • #1722: Options allowing the selection of whether system CAs were included have been removed due to automatic load of system CA:

    • includeSystemCa in module.keycloak

    • useJVMTrustStore in module.coms

    • useJVMTrustStore in module.smtp

    • useJVMTrustStore in module.ip-rct

Hot-reload support - #1279

Some modules now support the experimental hot-reload feature, which avoids restarting a module when its configuration changes.

Add getters for AlarmBuilder - #1768

It is now possible to retrieve the values of the fields set in the AlarmBuilder from the Alarms Controller.

Documentation
