Map

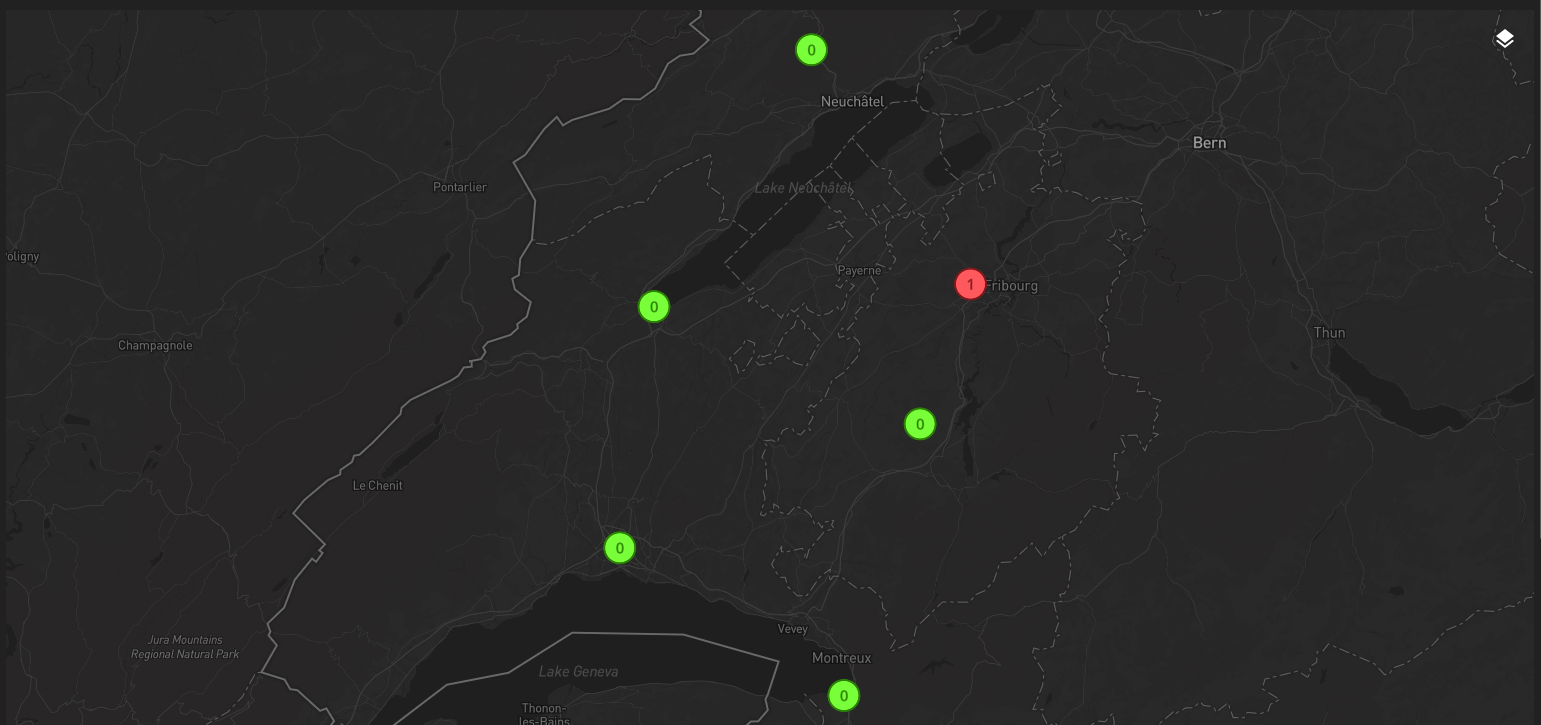

The Map widget displays configured geographical layers on an interactive map. It renders the GeoJSON produced by Geographical aggregation, including static geo.maps data and streamed collection-backed and alarm-backed layers, and can also overlay WMS and WMTS raster sources.

Capabilities

Capability	Support	Comment
Use online map tiles		Supported with Mapbox tiles (requires a dedicated API token).
Use offline map tiles		Supported with the Protomaps format for offline access.
Use satellite view		Supported only with a dedicated Mapbox style (using Mapbox Studio).
Update base map style		Supported through widget library settings. See Mapbox.
Display static value-linked layers on a map		The widget renders configured OnSphere layers produced by Geographical aggregation. See Layer controls and user-facing filters.
Display static alarm-linked layers on a map		The widget renders configured OnSphere layers produced by Geographical aggregation. See Layer controls and user-facing filters.
Display collection-backed geographical layers on a map		COLLECTIONS layers are rendered through the same map request contract. See Layer controls and user-facing filters.
Display alarm-backed geographical layers on a map		ALARMS layers are rendered through the same map request contract. See Layer controls and user-facing filters.
Display static or dynamic icons on a map		Point icons are configured in Geographical aggregation and loaded by the widget. See Icons.
Configure point and polygon colors per feature		Point and polygon colors are read from feature properties with a default fallback, for static, collection-backed, and alarm-backed STANDARD layers. See How feature colors are resolved.
Color severity layers automatically from alarm severity		SEVERITY layers are colored from the configured severity palette instead of per-feature properties. See How feature colors are resolved.
Points aggregation (clustering)		Standard and severity point layers can expose clustering options. See Layer controls and user-facing filters.
Show or hide configured OnSphere layers		The layer menu can toggle any configured layer. See Layer controls and user-facing filters.
Hide the layer menu through configuration		Set displayLayersMenu to false to remove the layer menu (defaults to true). See Layer controls and user-facing filters.
Navigate to a dashboard from a displayed map element		Use the GeoJSON linkedDashboard property. See Layer controls and user-facing filters.
Load SVG as an map icon		See Icon image formats
Limit map boundaries and movements		Configure center, zoom, pitch, bearing, maxBounds, disablePan, disableRotate, and disableZoom. See Navigation and camera controls.
Switch dynamic collection filters from the map		The layer menu exposes collection filter ids when a visible layer declares more than one. See Collection and alarm filters.
Switch dynamic alarm filters from the map		The layer menu exposes alarm filter ids when a visible layer declares more than one. See Collection and alarm filters.
Notify when a selected filter returns no points		Selecting a collection or alarm filter with an empty result shows a notification without locking the layer. See Collection and alarm filters.
Reuse one floor selector across OnSphere, WMTS, and WMS layers		Use style: "Floor" together with floorPropertyPath. Only one floor parameter is supported per widget. See Floor-linked filtering.
WMTS layer support		Overlay external WMTS raster tiles with templated URLs and runtime parameters. See External raster overlays and parameters.
WMS image support		Display WMS GetMap responses as a single image refreshed on map move or zoom. See WMS image sources.
Toggle WMS and WMTS sources at runtime		Each configured external source appears in the layer menu and can be shown or hidden independently. See Runtime source toggles.
WMS / WMTS static parameter settings		Inject fixed placeholder values into WMS and WMTS templates. See WMS / WMTS template parameters (Static, Dynamic, Shared).
WMS / WMTS dynamic parameter settings		Expose Select placeholders as in-map dropdowns or floor pickers. See WMS / WMTS template parameters (Static, Dynamic, Shared).
WMS / WMTS shared parameter settings		Reuse one selector value across several WMS and WMTS sources. See WMS / WMTS template parameters (Static, Dynamic, Shared).
Open map menu actions from right click or long press		Map menus can use the clicked position and feature context. See Map context and Create alarm from map context menu.
Read clicked coordinates, layers, and features in menu context		The map menu context exposes map.point and map.layers data. See Map context.
Navigate to a specific location on the map from a menu or widget		Use navigateOnMap from the widget context. See Map context.
Activate or deactivate a specific layer from a menu or widget		Use activateLayer and deactivateLayer from the widget context. See Map context.
Link to the current map location through the URL		The widget synchronizes the pos URL parameter on map moves. See URL state and context integration.
Use street view		See Limitations and non-supported features
Update element location on the map		See Limitations and non-supported features
Read live mouse-pointer coordinates		See Limitations and non-supported features
Include the map in a menu (for example as a position picker)		See Limitations and non-supported features
Draw shapes or query an area on the map		See Limitations and non-supported features
Search, measure distance or area, or calculate itineraries		See Limitations and non-supported features
Export the current map view as an image or PDF		See Limitations and non-supported features
Use tiled WMS sources		See Limitations and non-supported features
Use external vector, WFS, or GeoJSON overlay sources		See Limitations and non-supported features
Adapt WMS or WMTS language and theme automatically from the OnSphere theme		See Limitations and non-supported features
Configure WMS or WMTS layers automatically from GetCapabilities		See Limitations and non-supported features

Module capabilities

Capability	Support	Comment
Display static value-linked layers		See Static value-linked layers
Display static alarm-linked layers		See Static alarm-linked layers
Display collection-backed geographical layers		See Collection-backed layers
Display alarm-backed geographical layers		See Alarm-backed layers
Display static or dynamic icons		See Icons
Support GeoJSON Point, LineString, and Polygon		See GeoJSON support
Use reserved GeoJSON properties on map features		See Fixed properties for geometries
Set per-feature colors on points and polygons		Use circle-color (points) or fill/outline (polygons); unset colors fall back to a default. Works for static, collection-backed, and alarm-backed STANDARD layers. See How feature colors are resolved.
Color severity layers automatically from severity		SEVERITY layers derive colors from the alarm severity palette; per-feature color properties are ignored. See How feature colors are resolved.
Set per-feature colors on lines		LineString features use a fixed color and width. See Limitations.
Declare STANDARD, SEVERITY, and ICON layers		See Layer and source model
Populate layers from STATIC sources		See Layer and source model
Populate layers from COLLECTIONS sources		See Collection-backed layers
Populate layers from ALARMS sources		See Alarm-backed layers
Inherit static GeoJSON hierarchically from geo.maps		See Static GeoJSON inheritance
Mix different geometry types inside one layer		See Limitations
Support GeoJSON polygons with holes		See Limitations
Geocoding and reverse geocoding to translate between addresses and coordinates		See Limitations
Expose geographical information through an API		See Limitations

List of configuration files

Filename	Short description	Format	Link to documentation
dashboard.view#MapsWidget	Defines the MapsWidget widget global settings.	json	Link

List of examples

Short description	Link to documentation
Display static value-linked layers	Display standard points on map
Display static alarm-linked layers	Display alarm points on map
Display collection-backed layers	Display collection-backed layers on map
Display alarm-backed layers	Display offline live alarm layers on map
Display static and dynamic icons	Display icons points on map
Use offline MapLibre and Protomaps	Offline map display standard points on map
Overlay WMTS sources	Display a WMTS source as a layer
Overlay WMS image sources	Display a WMS source as an image
Reuse shared WMS and WMTS parameters	Shared parameters for WMS and WMTS sources
Reuse one floor selector across OnSphere, WMTS, and WMS layers	Display floor-filtered mixed map sources
Use map context methods and clicked feature context	Map context usage
Trigger map menu actions from a clicked position	Create alarm from map context menu

Basemap libraries and required settings

The widget renders one basemap library per widget instance. On top of that basemap, it can display configured OnSphere layers and optional WMS or WMTS raster overlays.

Mapbox

Mapbox is the online basemap option. When the widget uses Mapbox:

• mapStyle is required and defines the light and dark styles used by the widget

• a valid Mapbox access token is required to load the base tiles

• satellite views and other custom base styles come from Mapbox styles, for example through Mapbox Studio

Get an API token

Get a Mapbox account. Then connect to the Mapbox console and get a token following Access Tokens documentation. Usually you can copy the one shown on the access token page.

The key format is similar to pk.eyXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX.YYYYYYYYYYYY.

MapLibre and Protomaps

MapLibre is the offline or self-hosted basemap option. When the widget uses MapLibre:

• protomapSource is required

• the source can be an osp-web resource path or a remote HTTPS URL

• the server hosting the PMTiles archive must support HTTP range requests

Protomaps stores map tiles as a single file, which makes it suitable for offline or controlled-network deployments. For an end-to-end example, see Offline map display standard points on map.

Navigation and camera controls

The map supports the usual interactions:

• Mouse on desktop

  • click and release left click to pan the map

  • click and release right click to update pitch and bearing

  • mouse wheel to zoom

• Fingers on touch devices

  • touch and drag to pan

  • pinch to zoom

  • pinch and rotate to update the bearing

  • three fingers touch and hold to update the pitch

The widget can also constrain those movements with centerPosition, zoomLevel, pitch, bearing, minZoom, maxZoom, minPitch, maxPitch, maxBounds, disablePan, disableRotate, and disableZoom.

Icon image formats

Map icon assets configured through mapsWidgetSettings.icons are loaded at runtime by the map library. Use raster image files only: .png, .jpg, .jpeg, or .webp.

.svg files are not supported directly for these runtime map icons in either Mapbox or MapLibre. Convert SVG icons to one of the supported raster formats before referencing them from Dashboard view and module.resources.

Layer controls and user-facing filters

The widget always requests selected layer ids through the maps websocket using the same request-maps-layer contract. Static geo.maps layers, COLLECTIONS layers, and ALARMS layers all reuse that request. mapsWidgetSettings.layerOptions decides which OnSphere layers can be displayed by the widget.

The layer menu lets the user show or hide any configured OnSphere layer. For point layers, clustering is defined in the layer configuration and rendered by the widget when the layer is active.

The same layer mechanism also enables click navigation through the GeoJSON linkedDashboard property. When an ICON layer is used, the widget must also load the corresponding icon assets from Dashboard view and module.resources.

Point and polygon colors are set per feature (for static, collection-backed, and alarm-backed STANDARD layers), while SEVERITY layers are colored automatically from the alarm severity. See How feature colors are resolved.

The whole layer menu can be hidden with mapsWidgetSettings.displayLayersMenu. It defaults to true. Set it to false to remove the layer button and its menu, for example on dashboards where layer visibility and filters must stay fixed. Hiding the menu removes the OnSphere layer toggles, the dynamic collection and alarm filter selectors, and the WMS and WMTS source toggles. It does not change which layers are requested or rendered, and the floor picker and other Select parameter selectors remain available because they are separate controls.

Collection and alarm filters

When a visible COLLECTIONS layer declares more than one filter id, the layer menu exposes those filters and lets the user switch between them. The same applies to ALARMS layers that declare more than one alarm filter id.

The widget tracks at most one active dynamic filter per OnSphere map layer:

• for COLLECTIONS sources, the selected id is sent as dynamicCollectionFilters[layerId]

• for ALARMS sources, the selected id is sent as dynamicAlarmFilters[layerId]

Changing one of those menu entries updates the next maps websocket request for the affected layer only. It does not modify any other OnSphere layer, does not synchronize other widgets such as CollectionTable or AlarmTable, and does not introduce any widget-side view concept for COLLECTIONS.

For ALARMS layers, the source view stays the one declared in layer.ospp. The widget only changes the active filter id for that layer and never switches the underlying alarm view.

When a selected collection or alarm filter returns no point for that layer, the widget keeps the filter selector usable and shows a short notification instead of locking the layer. The layer is never disabled by an empty result, so you can immediately switch back to another filter or to a filter that does have points. The notification is shown only when a filter selection is changed and the resulting data is empty; it is not raised on the initial load nor when switching to a filter that does have points.

Floor-linked filtering

One floor selector can drive both external raster sources and OnSphere layers.

Use style: "Floor" on a Select or Shared parameter to create the floor selector. Then, for each OnSphere layer that must react to that floor, add floorPropertyPath on the corresponding mapsWidgetSettings.layerOptions entry.

The path is resolved against the final GeoJSON properties object emitted for that layer, so values such as floor, additionalData.floor, or map.floor can be matched against the selected floor. Layers without floorPropertyPath are not affected.

The selected floor is carried in the url, so a link can open a dashboard directly on a given floor. See Floor parameter.

Warning

Only one style: "Floor" parameter is supported per widget.

Note

The map menu context does not expose the currently selected floor value. If a menu action needs that value, ask for it explicitly or derive it from your own configuration flow.

External raster overlays and parameters

WMTS sources

The widget can overlay WMTS raster layers on both Mapbox and MapLibre maps. Add them inside mapsWidgetSettings.wmtsSources.

• Build the urlTemplate with standard {z}/{x}/{y} coordinates and optional custom ${placeholder} parts.

• Describe each placeholder in urlRequestParameters.

• sourceName identifies the source in the map and in the layer menu.

• format and tileSize must match the WMTS server configuration.

Warning

Adding many WMTS sources or heavy layers can impact performance because each source triggers additional tile requests.

Linked examples

• Display a WMTS source as a layer

WMS image sources

The widget can overlay WMS GetMap responses on both Mapbox and MapLibre maps. Add them inside mapsWidgetSettings.wmsSources.

• Build the urlTemplate as a standard WMS request with optional custom ${placeholder} parts.

• Describe each placeholder in urlRequestParameters.

• sourceName identifies the source in the map and in the layer menu.

• format and tileSize must match the WMS server configuration if you substitute them in the template.

WMS support is image-based, not tile-based. The widget always overrides BBOX, WIDTH, and HEIGHT in the query string to match the current viewport in Web Mercator (EPSG:3857).

Warning

Adding many WMS sources or requesting large bounding boxes can impact performance because each source triggers additional HTTP requests.

Linked examples

• Display a WMS source as an image

Runtime source toggles

Each configured WMS or WMTS source appears in the layer menu under the external section. Users can show or hide those sources independently at runtime without changing the dashboard configuration.

Warning

OnSphere layers always render above WMS and WMTS overlays. This can hide labels or information coming from the raster layer underneath.

WMS / WMTS template parameters (Static, Dynamic, Shared)

urlTemplate strings for WMS and WMTS sources can include custom placeholders such as ${floor} or ${style}. Each placeholder must be described either in mapsWidgetSettings.wm(t)sSources.urlRequestParameters or in mapsWidgetSettings.sharedParameters.

There are three supported parameter types:

• Static: fixed values injected automatically with no UI control

• Select: user-facing selectors with options and an optional defaultValue

• Shared: selectors defined once in mapsWidgetSettings.sharedParameters and reused across several WMS or WMTS sources

With style: "DropDown", the selector is rendered as a dropdown. With style: "Floor", it is rendered as the compact floor picker described above. When several sources reuse the same placeholder id, the first matching definition for that id drives the selector.

Linked examples

• Shared parameters for WMS and WMTS sources

• Display floor-filtered mixed map sources

URL state and context integration

URL parameters

This widget supports URL parameters. The available parameters are:

• pos: map position, zoom, pitch, and bearing

• floor: floor currently selected in the floor picker

The pos format is encoded as follows, with decimal points written as , and each part separated by ;:

• n for longitude

• a for latitude

• z for zoom

• b for bearing

• p for pitch

For example, a valid value is pos=n7,135696;a46,808249;z15,21.

The widget keeps pos and floor synchronized with the map as the user moves it.

Set disableUrlHistory to true in the widget settings to stop this widget reading and writing these parameters. See Disabling the parameters.

Floor parameter

When the widget declares a style: "Floor" parameter, as described in Floor-linked filtering, the selected floor is also carried in the url. A link such as https://<host>/<dashboard-id>#<widget-id>.floor=Niveau%202 opens the dashboard directly on that floor, with the floor picker, the floor-filtered OnSphere layers, and the WMS and WMTS templates already aligned on it.

The value is the value of the floor option declared in the parameter options, url-encoded. A value containing spaces or accents must therefore be escaped, for example Niveau%202 for the floor Niveau 2.

The floors are a closed list, so the widget only accepts a floor it knows:

• on load, the floor read from the url is applied when it matches one of the declared options

• when it matches none of them, is empty, or carries a malformed escape sequence, it is ignored and the parameter defaultValue is used instead. When that default is itself not part of the declared options, the first option is used

• the widget keeps following the fragment while it stays mounted, so opening a link pointing to another floor of a dashboard already displayed switches the floor without a reload

Changing the floor, from the picker or through the navigateOnMap context method, updates the url and adds a browser history entry, so the back button returns to the previously selected floor. Writing the fragment for the first time does not add a history entry, because establishing the initial floor is not a floor change.

Since the fragment is prefixed by the widget id, each map widget of a dashboard carries its own floor.

Map context

Warning

This feature is currently in beta. It may change in a future version without prior notice. See the Beta Features page for the full list of beta features and their planned release. If you’re using this feature, we encourage you to share your feedback to help with the evaluation process.

Warning

These methods are only available to widgets and menus on the same dashboard.

The widget exposes the following context helpers. Each one performs an action on the map widget and returns nothing, so they are called for their side effects. They are reached through the widget osp context described below.

Function	Parameters	Output / result
navigateOnMap	longitude: number, latitude: number: target center, in degrees. Both are required for the center to move. zoomLevel?: number: optional zoom level. pitch?: number: optional pitch, in degrees. bearing?: number: optional bearing, in degrees. floor?: string: optional floor id.	Runs a short fly-to animation to the requested camera position, applying zoomLevel, pitch, and bearing only when provided. When floor is set, it also updates the floor picker, which drives Floor-linked filtering, independently of the camera move.
activateLayer	layerName: string: a configured layer id, or a layer id or name that also appears in mapsWidgetSettings.layerOptions.	Shows the layer, as if the user enabled it in the layer menu. Has no effect if the layer is not configured for this widget, or if it currently holds no loaded data.
deactivateLayer	layerName: string: same resolution as activateLayer.	Hides the layer. Unlike activateLayer, it is not gated by loaded data.
setCollectionLayerFilter	layerId: string: the configured layer id of a COLLECTIONS layer. filterId: string: the collection filter id to activate.	Selects the active collection filter for that layer, like the menu selector in Collection and alarm filters. Affects only that layer’s next maps request.
setAlarmLayerFilter	layerId: string: the configured layer id of an ALARMS layer. filterId: string: the alarm filter id to activate.	Selects the active alarm filter for that layer, with the same per-layer behavior. The underlying alarm view declared in layer.ospp is never changed.

Map menu actions

Right click on desktop, or long press on touch devices, opens the standard dashboard menu system with a map-specific click context. This is the mechanism used by examples such as Create alarm from map context menu.

Right-click menu context

When a user opens the map widget context menu, the menu evaluation context includes a map object:

Field	Type	Description
map.point.lngLat	{ lng: number, lat: number }	Longitude and latitude of the click.
map.point.screenPoint	{ x: number, y: number }	Screen coordinates of the click, in pixels.
map.point.features	{ id, layerId, layerType, source, sourceLayer, geometry, properties }[]	Clicked rendered features coming from OnSphere STATIC, COLLECTIONS, and ALARMS layers only. WMS and WMTS overlays are not included.
map.layers	{ id, type, source, sourceLayer, features }[]	All configured OnSphere widget layers with their currently loaded GeoJSON features. Reflects the state already filtered by the current maps request, including bounds, floor filtering, and the active dynamic layer filter when one is used.
map.clickedLayerItem	{ id, type, source, sourceLayer, features }[]	Clicked rendered features regrouped by rendered map layer id. These entries usually point back to the configured widget layer through source, but id can be a runtime rendering layer such as clusters..., clustersText..., text..., or name.... It is therefore related to map.layers, but it is not a strict structural subset of it.

A single business feature can appear more than once in map.point.features if the click intersects several rendered sub-layers for the same OnSphere source layer.

If the click hits no feature, map.point.features and map.clickedLayerItem are empty, while map.layers still contains all currently loaded widget layers.

Note

map.layers exposes the transformed GeoJSON state currently loaded by the widget. It does not expose raw collection documents or raw alarm records before osp-maps has applied geometry extraction, bounds filtering, floor filtering, and dynamic layer filtering.

Additional useful context fields available in the map menu:

Field	Type	Description
user	Keycloak user object	The current Keycloak user.
widgetType	string	Always Maps.
osp	Widget context object	Includes the map helpers above and osp.widgets(id) to access other widgets on the same dashboard.

Linked examples

• Map context usage

• Create alarm from map context menu

Limitations and non-supported features

The widget currently does not support the following:

• street view

• updating the location of an existing element directly on the map

• reading live mouse-pointer coordinates outside of menu click context

• embedding the map as a position picker inside a menu

• drawing shapes to query a zone

• map search, distance or area measurement, and itinerary calculation

• exporting the current map view as an image or PDF

• tiled WMS support

• external vector, WFS, or GeoJSON overlay sources

• automatic WMS or WMTS setup through GetCapabilities

• automatic WMS or WMTS language or theme adaptation from the OnSphere theme
