Chart

Chart widgets allow to display analytic query results.

Capabilities

Capability	Support	Comment
Create charts based on recorded value		See chart widget

List of configuration files

Filename	Short description	Format	Link to documentation
dashboard.view#ChartWidget	Defines the ChartWidget widget global settings	json	Link

List of examples

Short description	Link to documentation

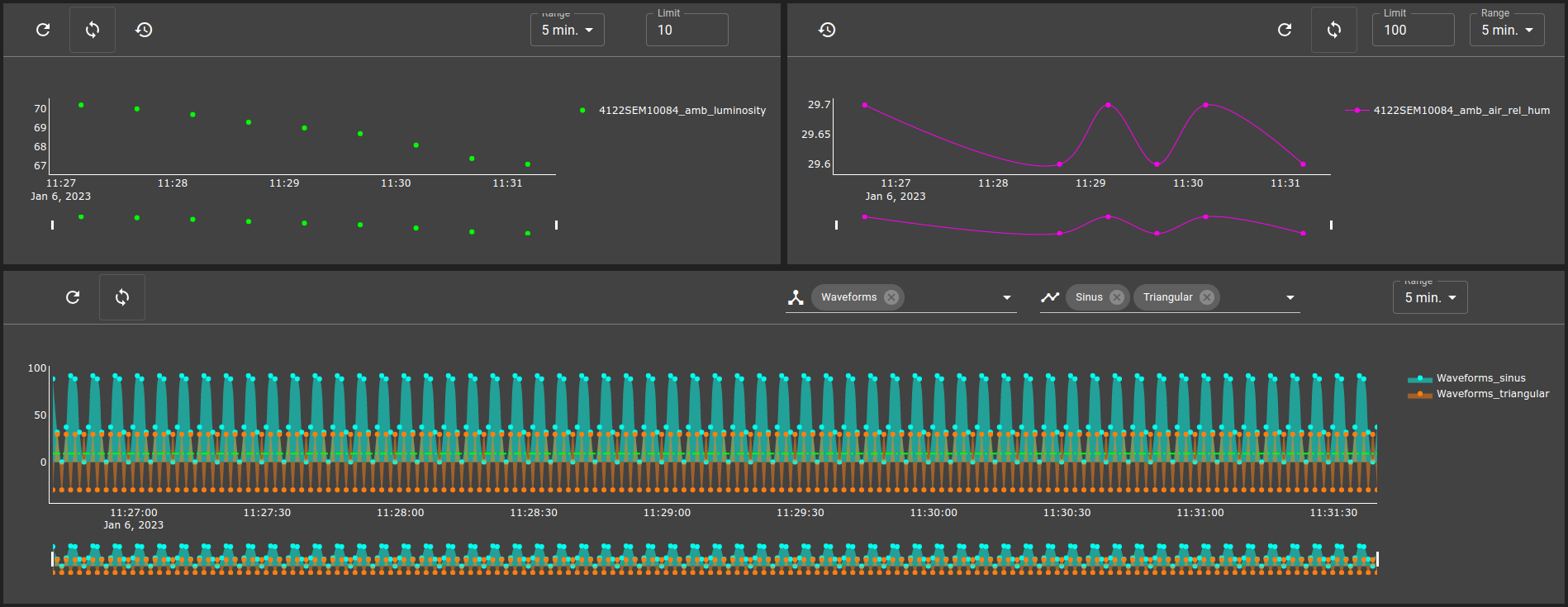

How to use a Toolbar widget to send actions to one or many charts.	Chart example

Interactions

• Limit the data set see limit widget page for references

Chart dispositions

Chart widgets can dispose the values in two different ways:

• Stacked (Default): Each line of values are displayed on top of each other

• Separated: Each line is separated in another y axis

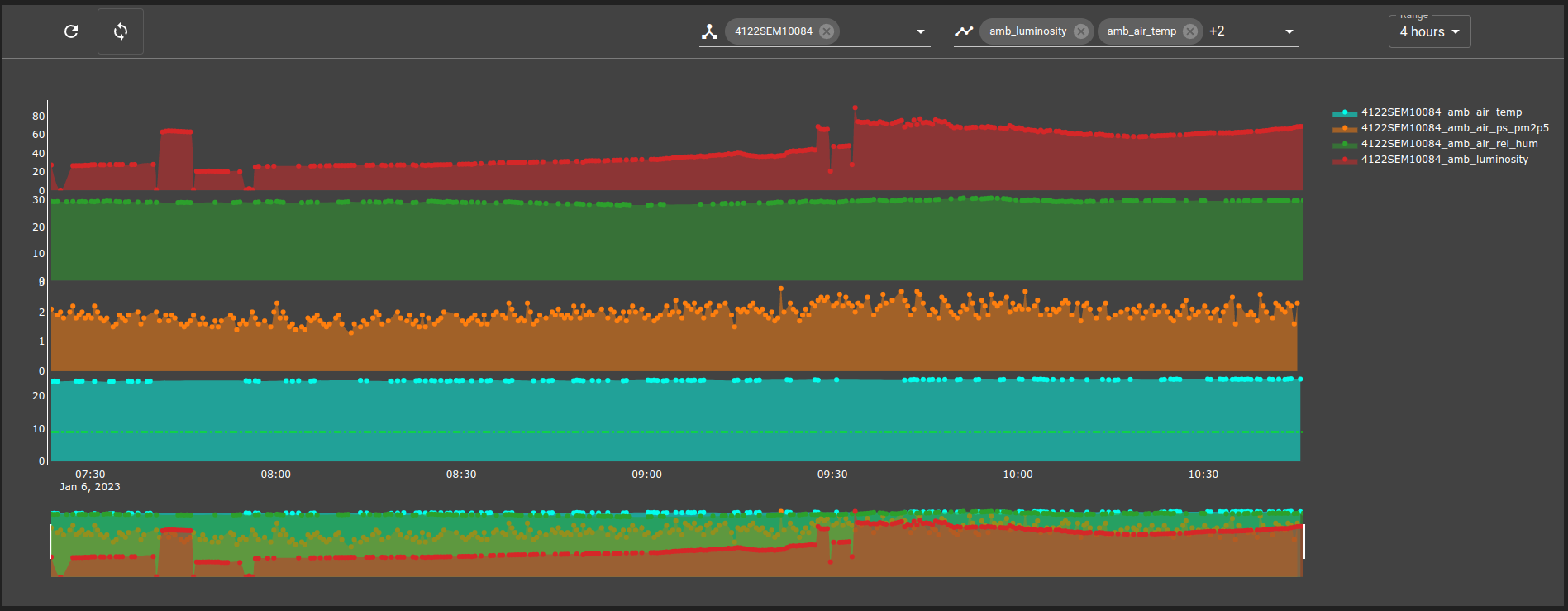

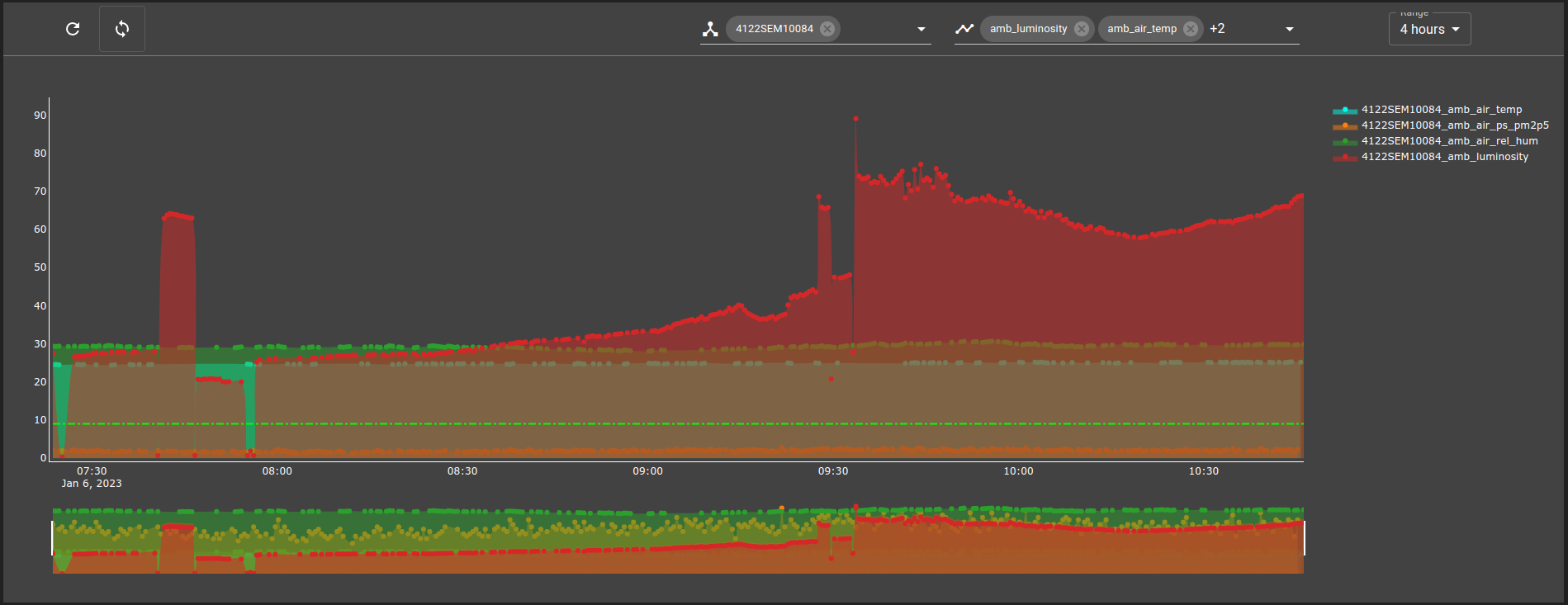

Use one of these dispositions according to the chart use case. Below an example of a chart once displayed Stacked and once displayed Separated.

Stacked

Separated

Editable mode

With editable as true, you can modify the chart titles and move the references lines as you want. These modification will stay on as the chart receive new data but not when the front is reloaded.

Widget Context

The widget context can be accessed from menus to fetch these different values from the widget:

• chart

  • query: current query (ItemId)

  • queryFilters: list of filters applied by this chart to the query (list)
