Select

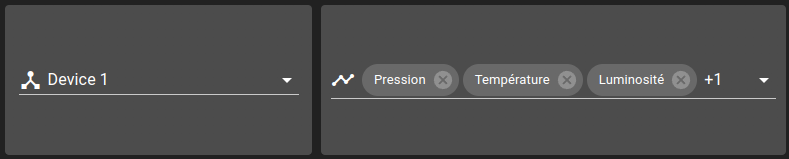

A Select Widget allows selecting one or many element from a list of options. After each modification, the widget emits its current selected option as an event.

There are different types of Select widgets:

• Custom: options are defined as settings in the configuration

• AnalyticsMeasure : options are defined by the configuration measures list and by the includeOptions and excludeOptions settings.

• AnalyticsField : options are defined by the configuration fields list and by the includeOptions and excludeOptions settings.

• ReportsTemplate: options are defined by the configuration reports templates list and by the includeOptions and excludeOptions settings.

• Form: options are defined by the configuration forms list and by the includeValues and excludeValues settings.

• AnalyticsAggregate: contains the list of aggregation functions available for charts widgets. List contains:

  • count: number of points

  • integral: computes the area under the curve per unit of time of subsequent non-null records

  • last: last element

  • mean: average value of all points

  • median: median value of all points

  • min: minimum value

  • max: maximum value

Each select type allows selecting multiple values, except for Form and AnalyticsAggregate which can only have one selected value.

List of configuration files

Filename	Short description	Format	Link to documentation
dashboard.view#SelectWidget	Defines the SelectWidget widget global settings	json	Link
