Authorization

Warning

The naming of the internal groups of OnSphere and Keycloak are clashing, be sure to identify which group is related to your section of the documentation.

Capabilities

Capability	Support	Comment
Authenticate users		Authentication and authorization (this chapter) are two distinct processes the first identifies who the user is, while the second determines the actions they are permitted to perform.
Distinguish between rights (write/read)		Permissions are divided into two separate authorizations: read and write. See Rights
Define external group without external source of trust		By default some groups are created in keycloak, this list can be extended or modified. See Manage external groups
Using group of users		OnSphere use only group granularity to manage rights see Manage internal groups
Using groups of groups		This feature is currently not supported. In case of interest please contact us at info@sdn.ch
Affect the same user to multiples groups		A user can be a member of any number of external groups see Rights order in case of conflict to understand how the rights are managed.
Manage access by user		In OnSphere the notion of user is not existing (for access rights), a user must be included in a external group.
Manage access by groups		Rights must be managed by groups.
Configure user with configuration push rights		The rights for pushing a configuration are described Pushing a configuration rights
Create local user (without SSO)		A user can be configured locally see Add local user
Remove local user		An issue has been filled (#1433), to remove a user it’s mandatory to connect on keycloak afterward removing in users.keycloak
Inheritances of rights		By default, a ItemId inherits rights from its parent. Refer to rights inheritances rules for more details. This rights can be specialized by overriding for specific items.
Using rights inside scripts		See scripts documentation
Manage access rights from dashboard (by collection for example)		This is only supported for the access of collection see
Using an external API to associate users and groups		An external API can be called to enrich the token, this permit to add some rights from an external source like a HTTP rest API. See Incorporating permissions from an external source
Give access to specific itemId		Each ItemId has two implicit rights (read and write) that allow access to individual items. See Implicit rights access for more details.

Concept

This chapter only handle the authorization elements after the user authentication for authentication consult the dedicated_chapter

When discussing authorization, two “domains” need to be considered. The first involves assigning a user to one or more internal groups within OnSphere. The second entails mapping external groups to internal groups. The rights inside the OnSphere hierarchy only apply to internal group.

Link between external group to internal groups

A external group is a group defined either on Keycloak or who are provided to keycloak from an external source of trust like LDAP or another similar technology. To be used in OnSphere, the external group must be mapped to an internal group to do so consult Manage internal groups.

Rights

The rights are managed as a tree base on the directory, with the following access level :

• READ : Grands permission to visualize the element

• WRITE: Grants permission to modify the element

Warning

access.rights is mandatory on the root folder.

Manage external groups

Concept

An external group is a group that can originate from:

• Keycloak

• An external trusted source, such as LDAP

This external group representation enables centralized access management for OnSphere, allowing a single source of truth to link a user to a group. See Keycloak default configuration for the keycloak configuration.

Use-case

• Receive groups and mapping (between group and user) from an external source of trust

• Add / remove / update groups on keycloak

Usage

Keycloak local groups

The groups from keycloak are simply declared in the file groups.keycloak

Manage internal groups

Concept

An internal group refers to a group within OnSphere, aimed at defining how the external world—represented by external groups—is mapped to OnSphere. These groups aggregate multiple users to streamline rights management.

In most cases, groups are managed externally in the organization’s global directory, requiring a mapping process to align the external representation with OnSphere’s internal structure. Note that a internal groups can be linked to multiples external groups.

Use-case

• Define group of user to simplify rights managements

• Map multiples sources of trust to an internal representation

Usage

The external groups are defined there, when declared they can be simply mapped to internal group by declaring the list of external link in the file module.rights.

The mapping must be done in user federation or the identity providers section of keycloak

Add local user

Concept

By default OnSphere declare 3 defaults users, this local user are declared in the users.keycloak file, and can be freely changed. Other user can be declared on the same file.

Use-case

• Define user if no external source of trust is available

• Define emergency users

• Define administrator access

Usage

The user can be added/removed/edited by modify the file users.keycloak, the mapping to the group must then be absolute path.

Force password

The password of a user declared in the users.keycloak file can be reset at each change of configuration (set the initial value to false)

One time password

The password can be temporary and ask the user to change-it at the first login, to do so set the field temporary to true.

Warning

When adding a local user through the users.keycloak configuration, removing it from the configuration does not automatically remove the user from Keycloak. You must manually delete the corresponding user directly from the Keycloak control panel.

Warning

The email must be unique between all user define on users.keycloak and the one define federations.keycloak and identityProviders.keycloak

Rights order in case of conflict

Concept

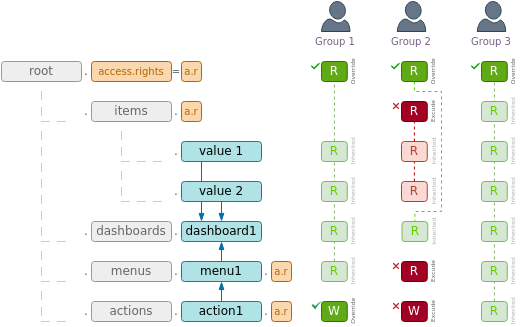

The image below present how different access configuration can work together

• Groups 1, 2 and 3 have access to open dashboard1

• Groups 1 and 2 have read access to values in items

• Only Group 1 has permission to execute action1

• Groups 1 and 3 can view menu1

Exclude/include

If a user is both included and excluded in the same file, the exclusion rule takes precedence. Therefore, this is not advisable.

Override and exclude/include

override is exclusive with include and exclude and the configuration is refused

Pushing a configuration rights

To push a configuration the internal group must be mapped to the keycloak realm role Configuration-management. See Default keycloak groups for details. By default this link can be done by affecting

"groups": [
  "/internal/Configuration-management"
],

Define rights

The access.rights file defines the permissions for the current folder and its subfolders. If different permissions need to be applied to a specific folder, the Inheritances rules will be used.

Inheritances rules

The rights are managed as a tree base on the directory. This implies that an element in a sub-directory will inherit the right of its parent.

There are three keywords used to define the rights :

• override : Reset the right with the one define here.

• include : Add a new group from the access level.

• exclude : Remove a group from the access level.

Examples

• Add rights to a form

• Setup your configuration to gain access to collections rights

Implicit rights access

Each itemId can be authorized by adding a group to the user with the following format :

• itemId-read - for read access

• itemId-write - for write access

Example :

root.dashboard.alarms-read : give access to the dashboard in read

This allows each user to be assigned to specific groups using this format, granting access to any ItemId without explicitly setting access.rights. A common use case is to enrich the Keycloak token via a script, using a collection defined by the frontend to provide access to item IDs without requiring a new configuration deployment.

Warning

The aggregator does not validate whether the specified access right actually exists. It only checks if the value ends with -read or -write, ignoring case sensitivity.
