Dashboard layout

Hint

Layouts are widgets themselves, meaning that all widget-specific configurations can be applied to them.

Box Layout

Overview

Box layouts allow you to dispose multiple widgets in a single one. The widgets are displayed vertically as a column or horizontally as a line in order they were defined. Layouts can be nested.

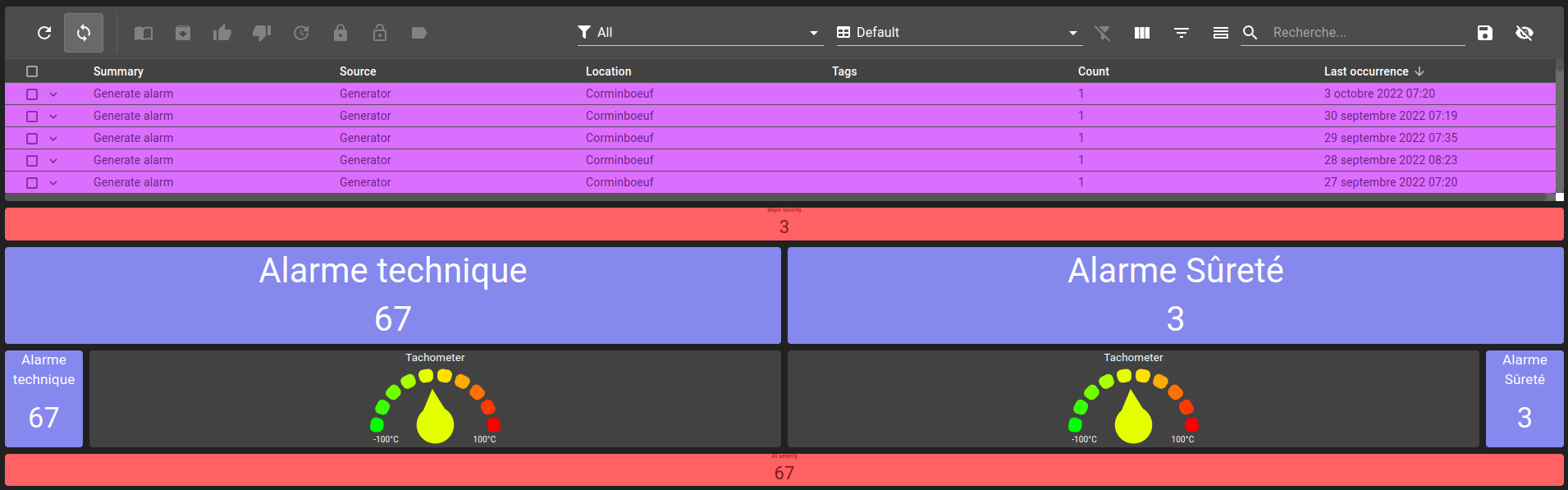

In this example, all widgets are within a box layout. Example of a box layout:

List of configuration files

Filename	Short description	Format	Link to documentation
dashboard.view#BoxLayoutWidget	Defines the BoxLayoutWidget widget global settings	json	Link

Usage

Following settings can be used to define a layout:

Setting	Usage	Type	Default value
orientation	Box orientation (Horizontal or Vertical)	Horizontal or Vertical	Vertical
components	List of components to display in this box	List of BoxLayoutComponent

BoxLayoutComponent Settings

Following settings can be used to define a box layout component:

Setting	Usage	Type	Default value
component	Widget	Widget
size	Widget initial size (in percent). Needs to be set if sizeFactor is none	0-1	0.1
sizeFactor	Component size factor. grow makes the widget take as much space it can and shrink makes it take the least amount of space.	grow, shrink or none	none

Example of a box layout widget:

{
    "type": "BoxLayout",
    "id": "",
    "title": "",
    "boxLayoutWidgetSettings": {
        "orientation": "Horizontal",
        "components": [
            {
                "component" : {
                    "type": "BasicInputOutputValue",
                    "id": "",
                    "title": "",
                    "valueSubscriptions": {
                        //...
                    },
                    "basicWidgetSettings": {
                        //...
                    },
                },
                "sizeFactor": "grow"
            },
            {
                "component": {
                    "type": "BasicInputOutputValue",
                    "id": "",
                    "title": "",
                    "valueSubscriptions": {
                        //...
                    },
                    "basicWidgetSettings": {
                        //...
                    },
                },
                "sizeFactor": "grow"
            }
        ]
    }
}

Border Layout

List of configuration files

Filename	Short description	Format	Link to documentation
dashboard.view#BorderLayoutWidget	Defines the BorderLayoutWidget widget global settings	json	Link

Features

Border layouts allow you to dispose multiple widgets in a single one. You can place a widget in one of the following location :

• North: top of the layout

• West: left side of the layout

• Center: center of the layout

• East: right side of the layout

• South: bottom of the layout

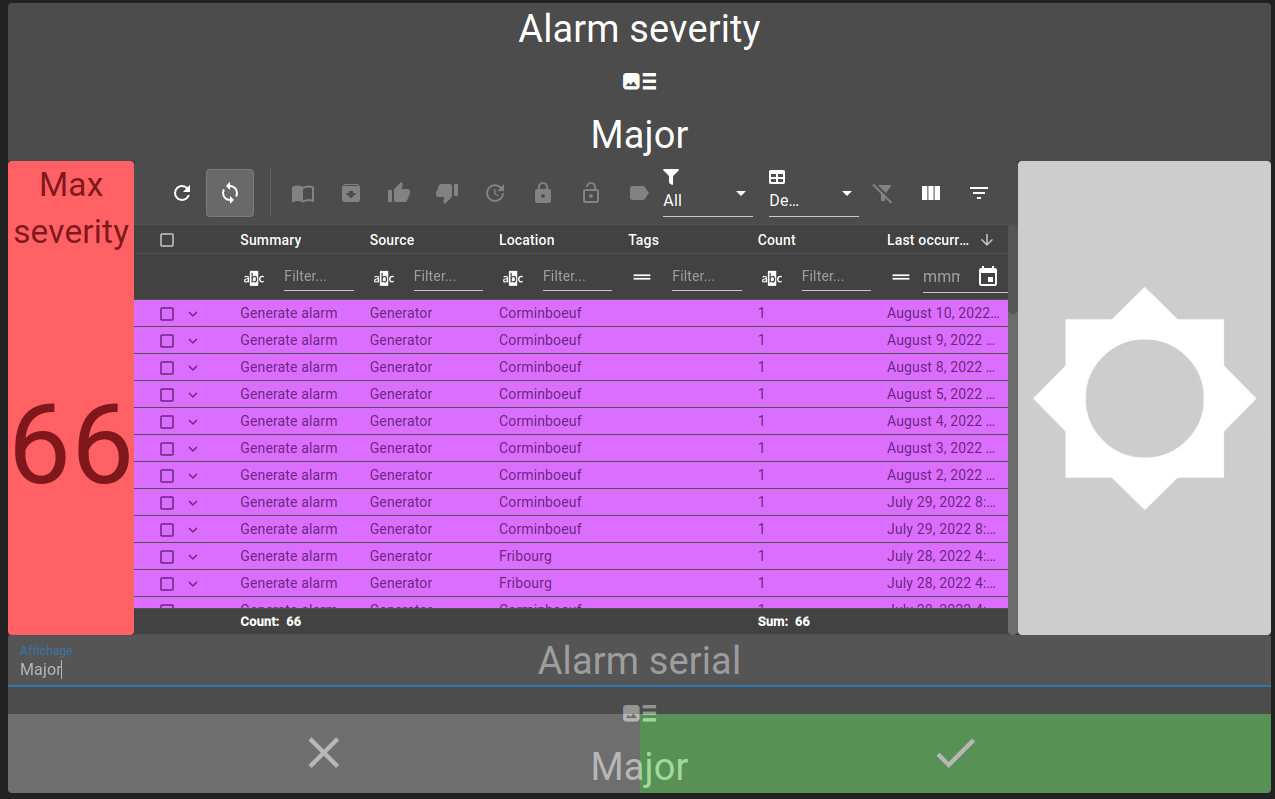

Example of a border layout:

Usage

The following settings can be used for defining a layout:

Setting	Usage	Type	Default value
northComponent	North component of the layout	Widget
southComponent	South component of the layout	Widget
centerComponent	Center component of the layout	Widget
westComponent	West component of the layout	Widget
eastComponent	East component of the layout	Widget
layout	Defines the different components width and height	Layout (see next section)
backgroundColor	Layout background color.	string

Defining layout sizes

The layout parameter is required to tell the widget how its different parts should be displayed. It expects four values:

• north: defines a height ratio, based on the border layout height (ex: 10% of layout => 0.1)

• south: defines a height ratio, based on the border layout height (ex: 10% of layout => 0.1)

• west: defines a width ratio, based on the border layout width (ex: 10% of layout => 0.1)

• east: defines a width ratio, based on the border layout width (ex: 10% of layout => 0.1)

The place taken by the center component is calculated automatically.

Example of layout parameter:

{
    "layout": {
        "north": {
            "height": 0.2
        },
        "south": {
            "height": 0.2
        },
        "west": {
            "width": 0.1
        },
        "east": {
            "width": 0.1
        }
}

In this example, the north and south component each take 20% of the height and the west and east each take 10% of the width.

Defining components

To define a component, you can simply define another widget :

{
  "centerComponent": {
    "type": "AlarmTable",
    "id": "id",
    "title": "",
    "menu": "root.alarms.menus",
    "alarmWidgetSettings": {
    }
  }
}
